Description

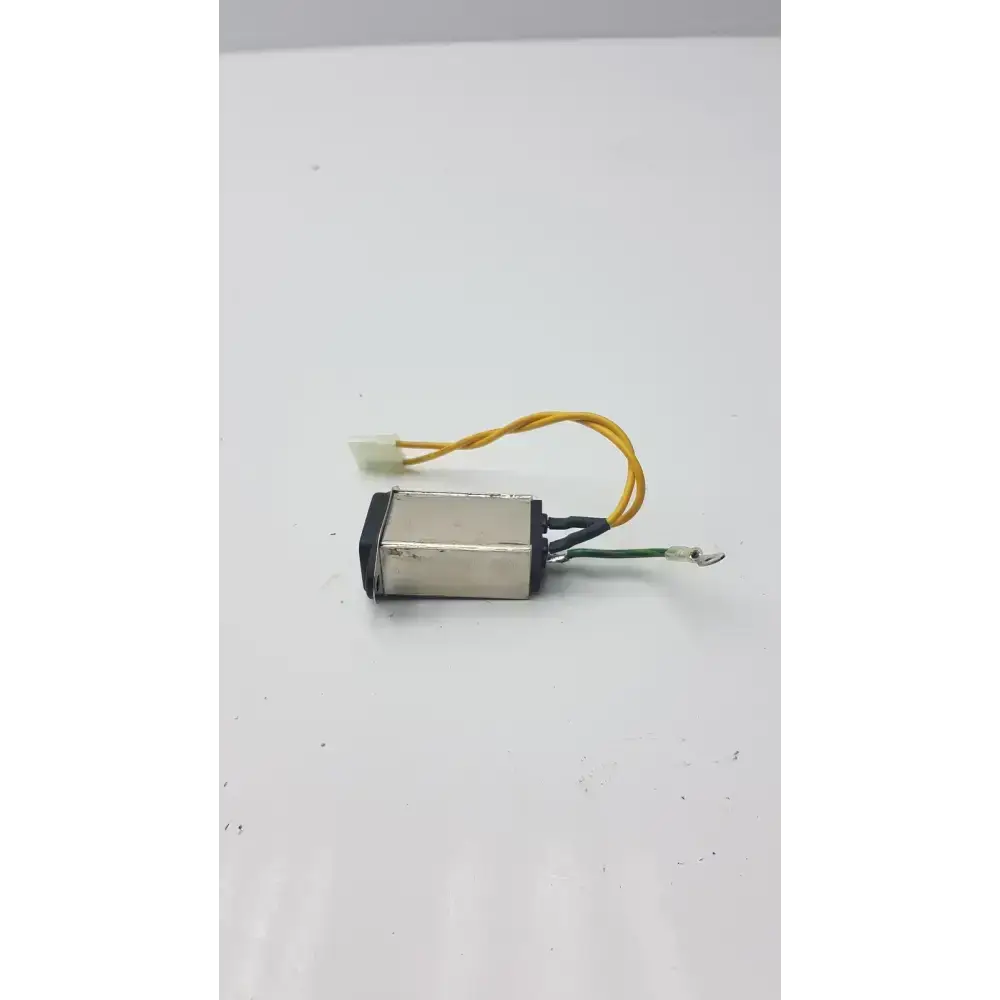

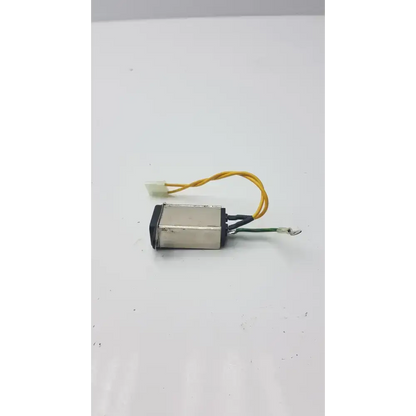

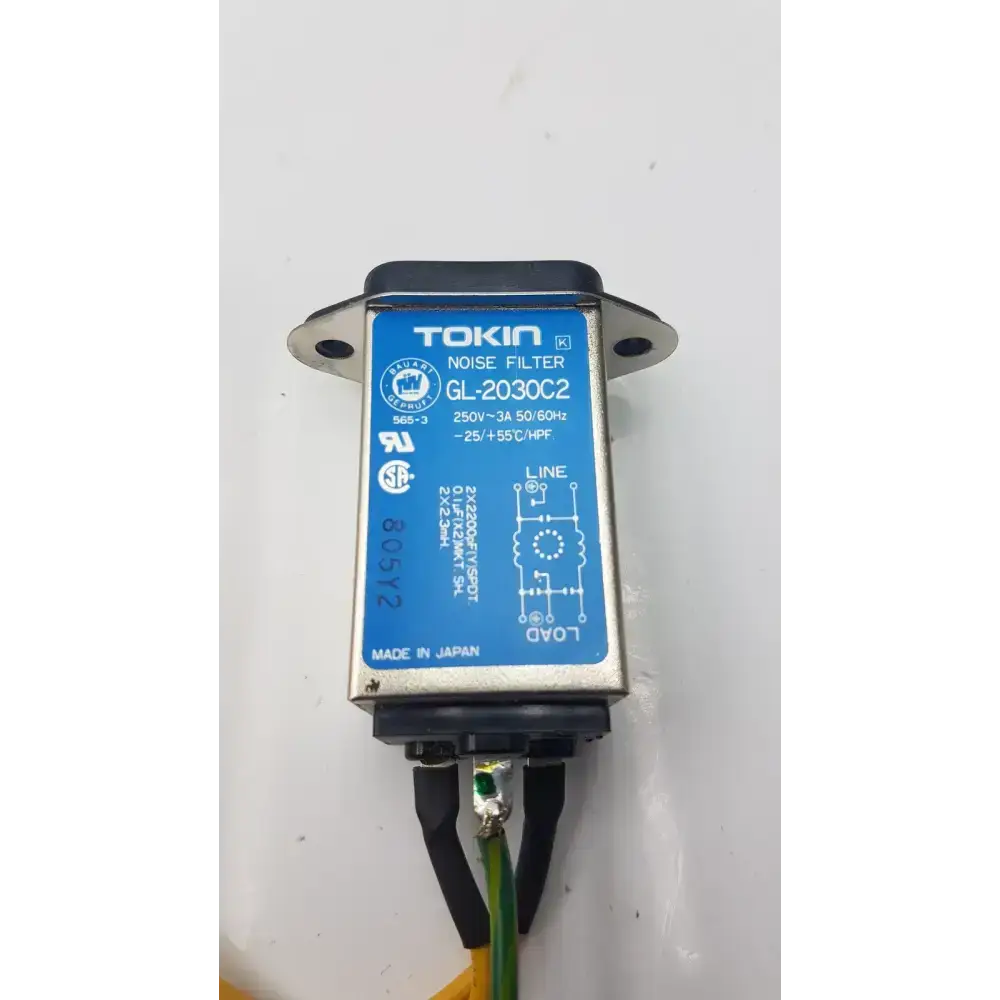

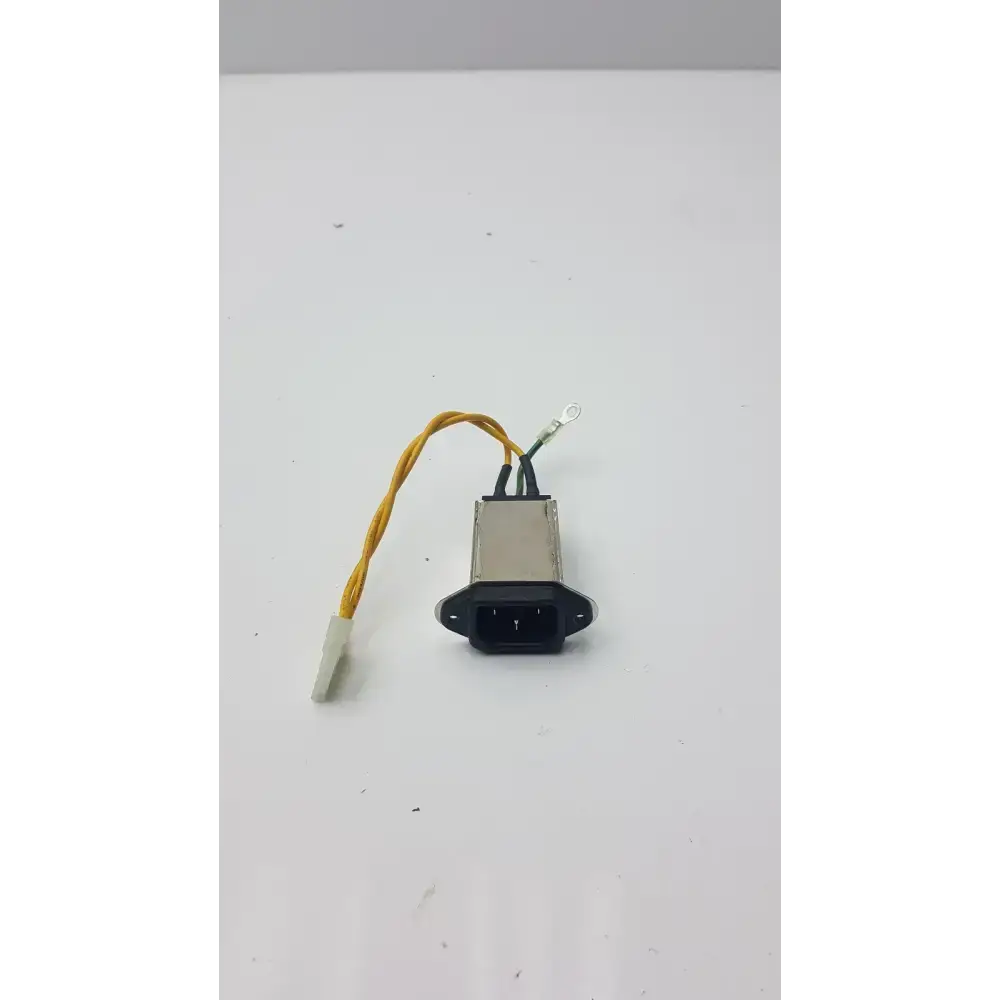

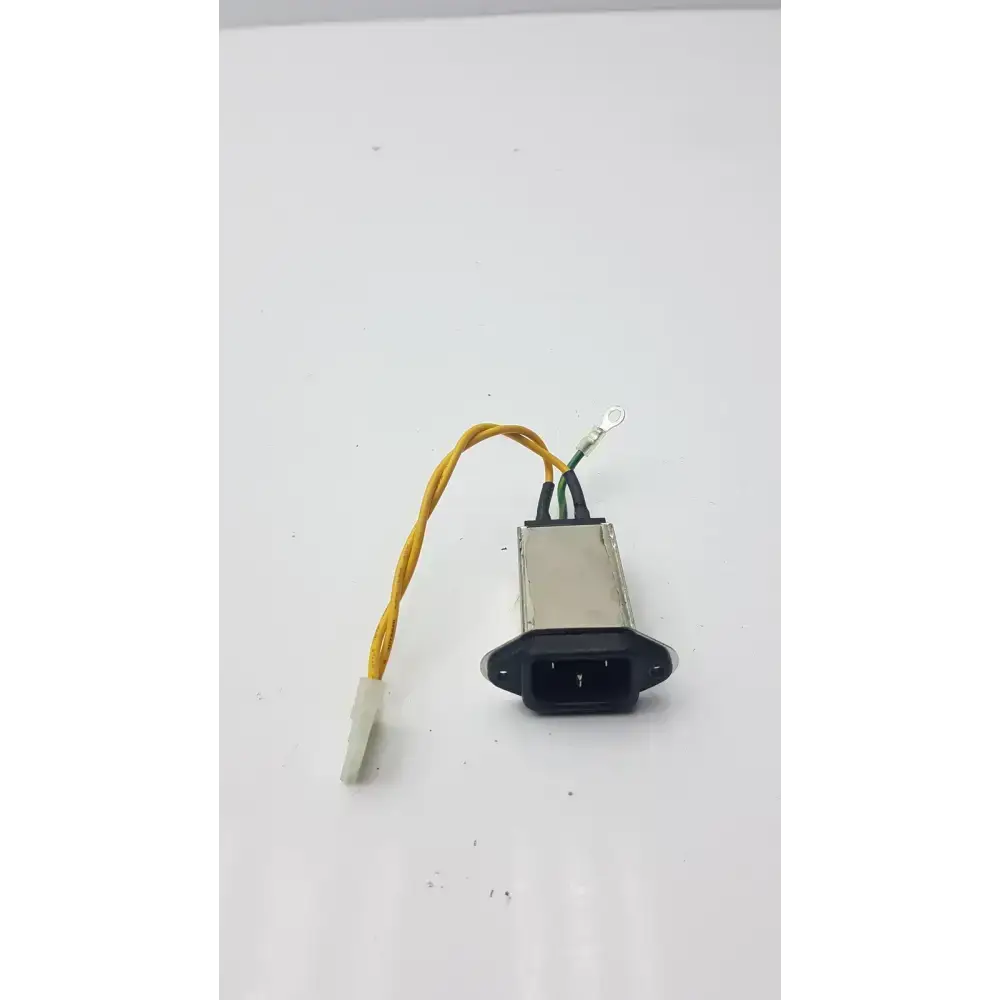

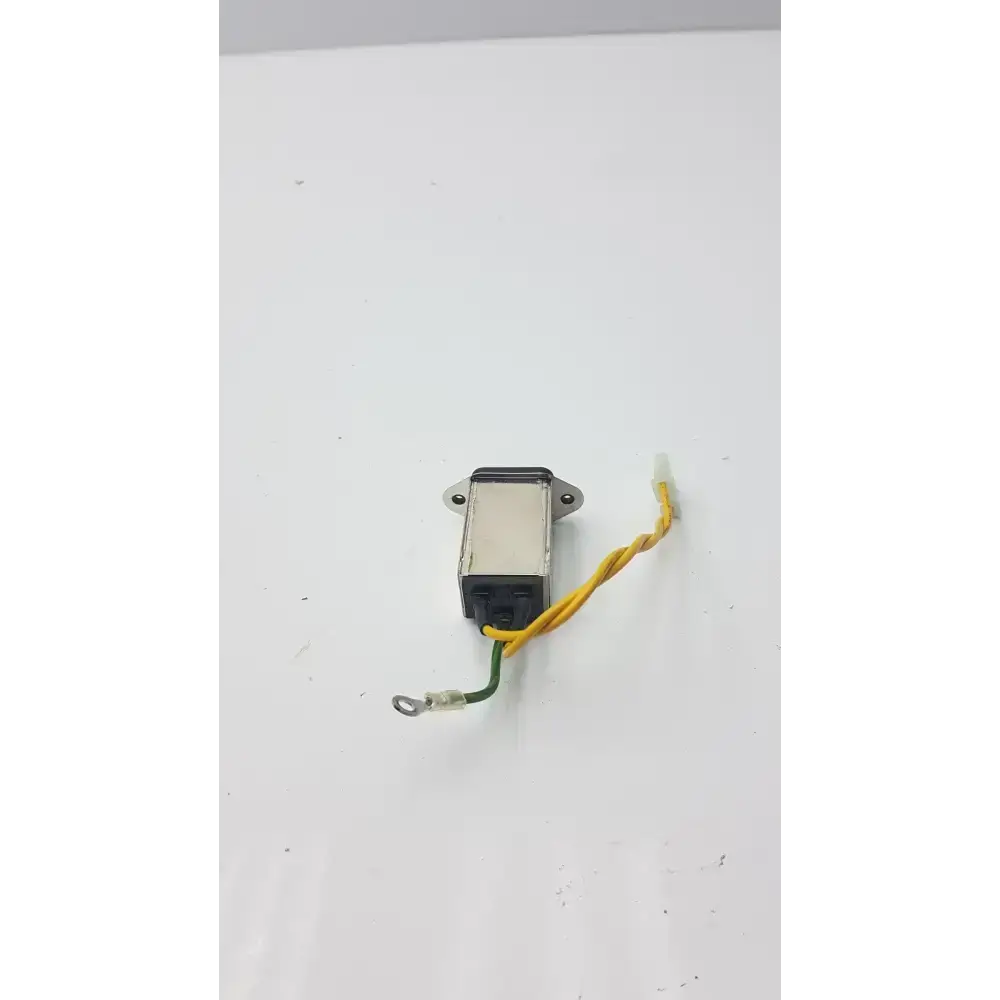

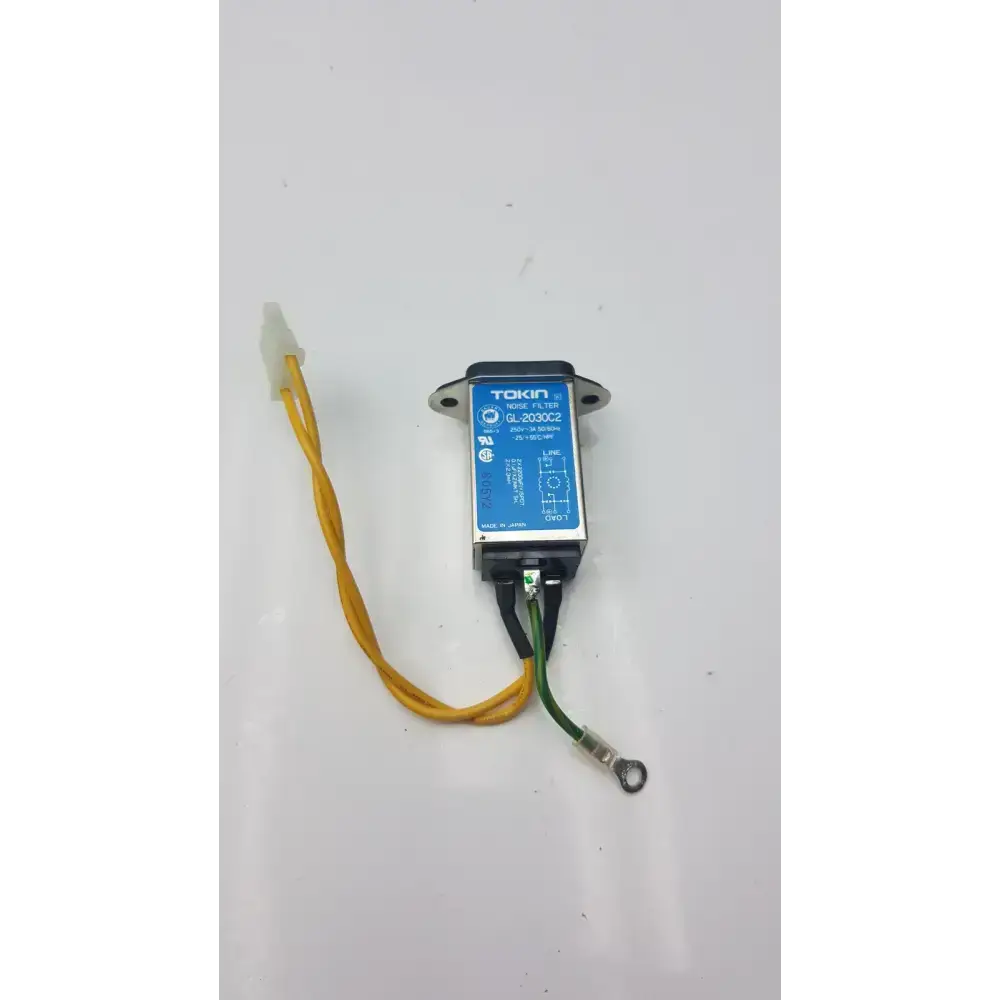

The TOKIN GL-2030C2 is a compact, panel-mount EMI/RFI noise filter designed to suppress electromagnetic interference in electronic equipment. With a 250V AC voltage rating and 3A current capacity, it is suitable for a variety of applications requiring reliable noise reduction.
Specifications
Brand: TOKIN
Model: GL-2030C2
Type: EMI/RFI Noise Filter
Voltage Rating: 250V AC
Current Rating: 3A
Frequency Range: 50/60Hz
Mounting Style: Panel Mount
Termination Style: Solder Terminal
Operating Temperature Range: -25°C to +55°C
Withstand Voltage: 1500V AC (1 minute, line to ground)
Insulation Resistance: 500MΩ minimum at 500V DC
Leakage Current: 0.5mA maximum at 250V AC, 60Hz
Certifications: UL, CSA, TÜV
Dimensions: 67mm (L) x 52mm (W) x 26mm (H)
Weight: Approximately 55g
Features
Designed to reduce electromagnetic interference (EMI) and radio-frequency interference (RFI)
Suitable for use in various electronic devices and equipment
Compact size allows for easy integration into existing systems
Reliable performance with low leakage current and high insulation resistance
Complies with international safety standards (UL, CSA, TÜV)
- Condition: Used
