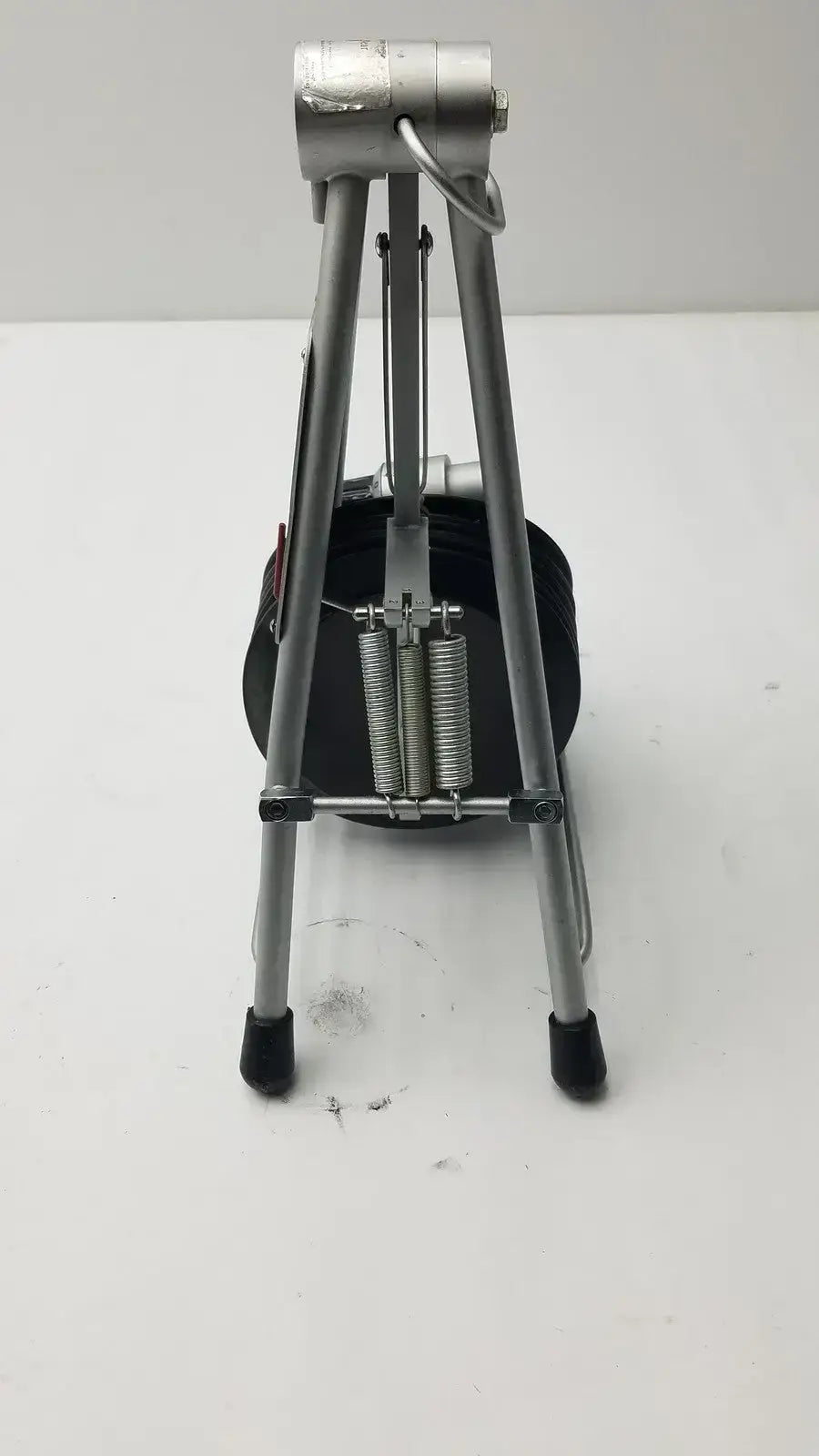

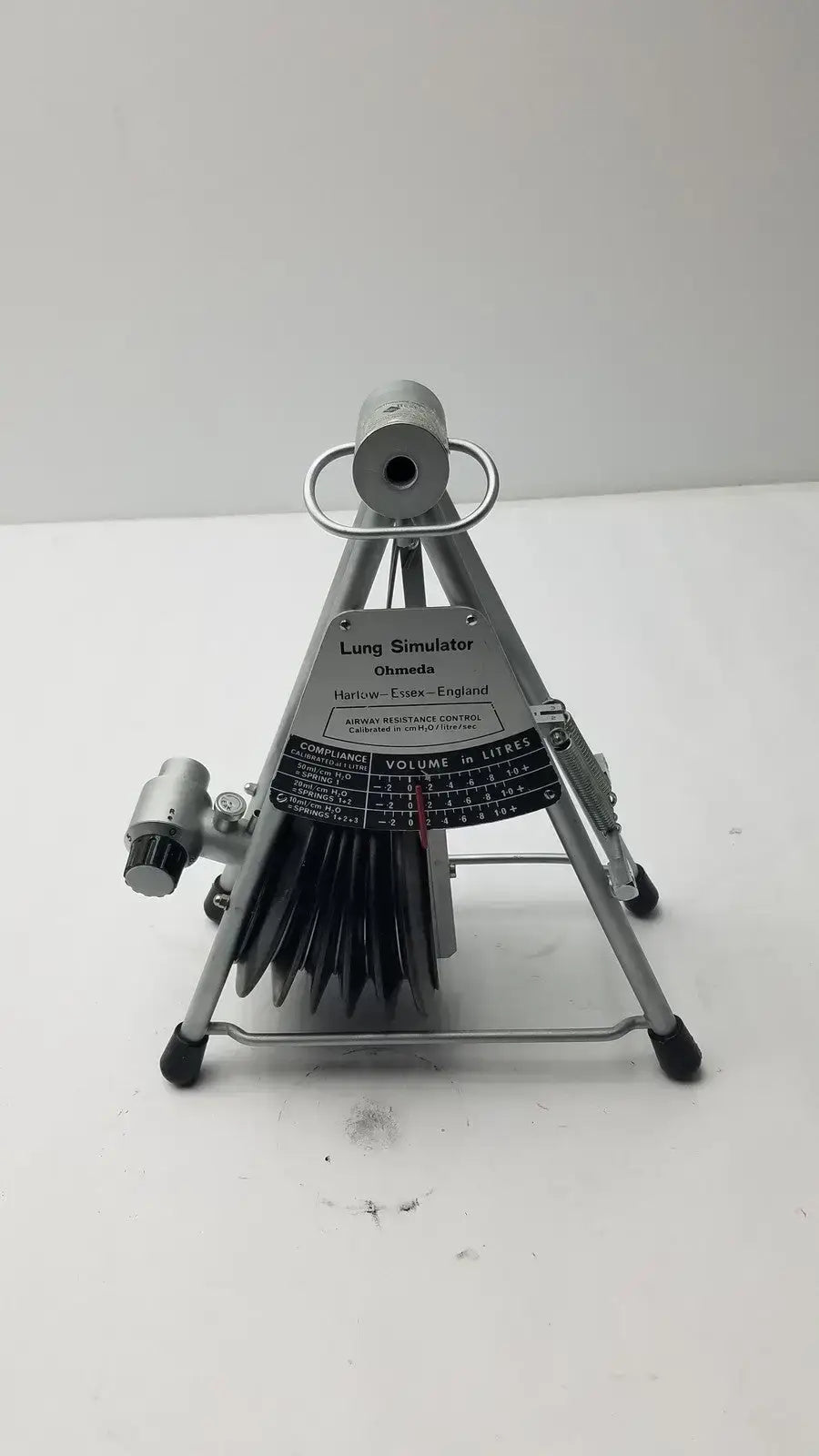

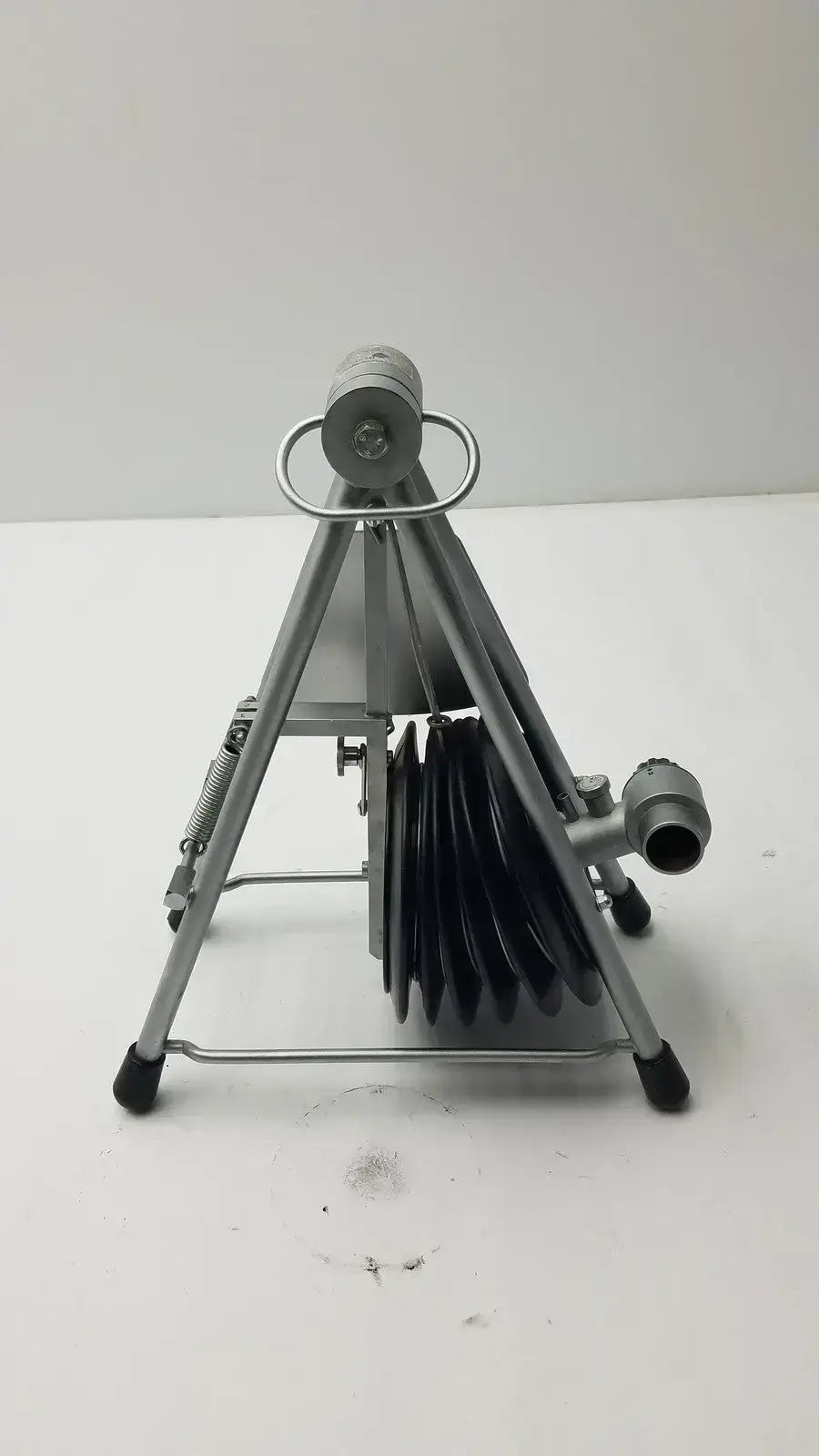

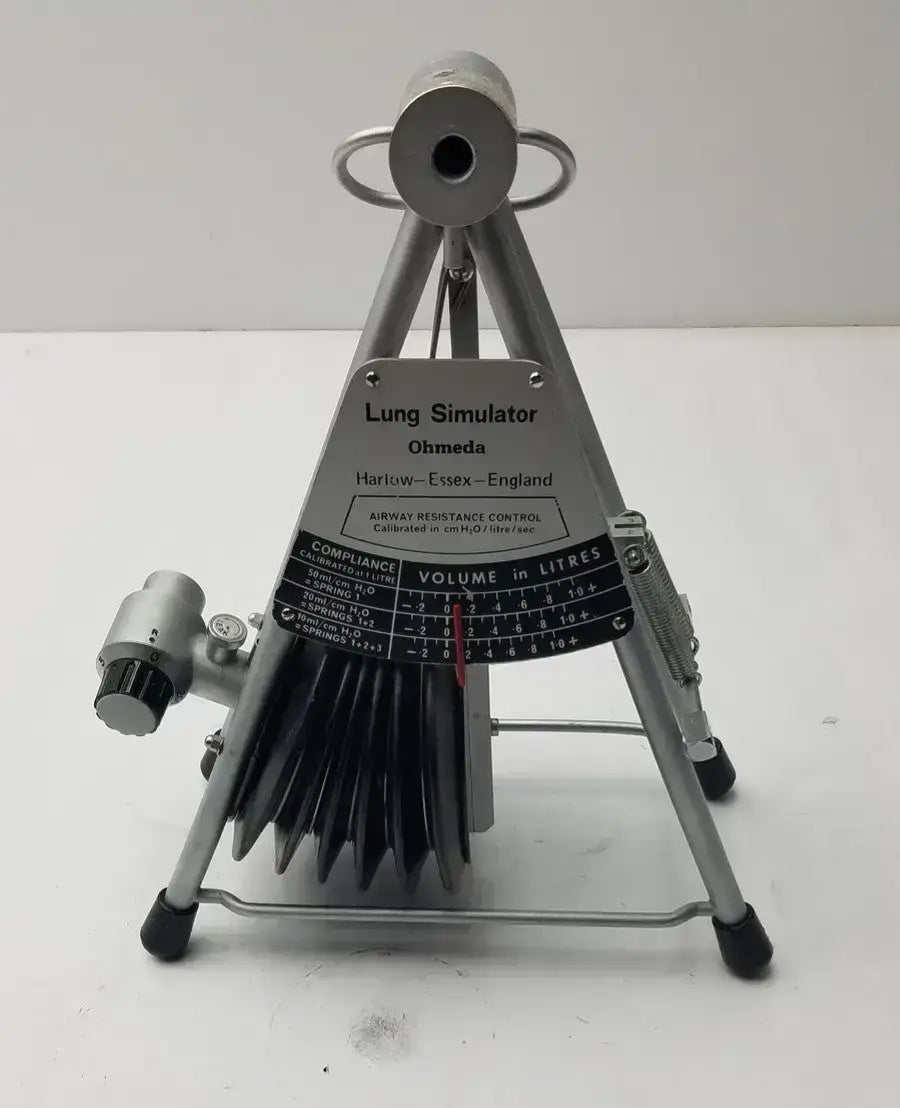

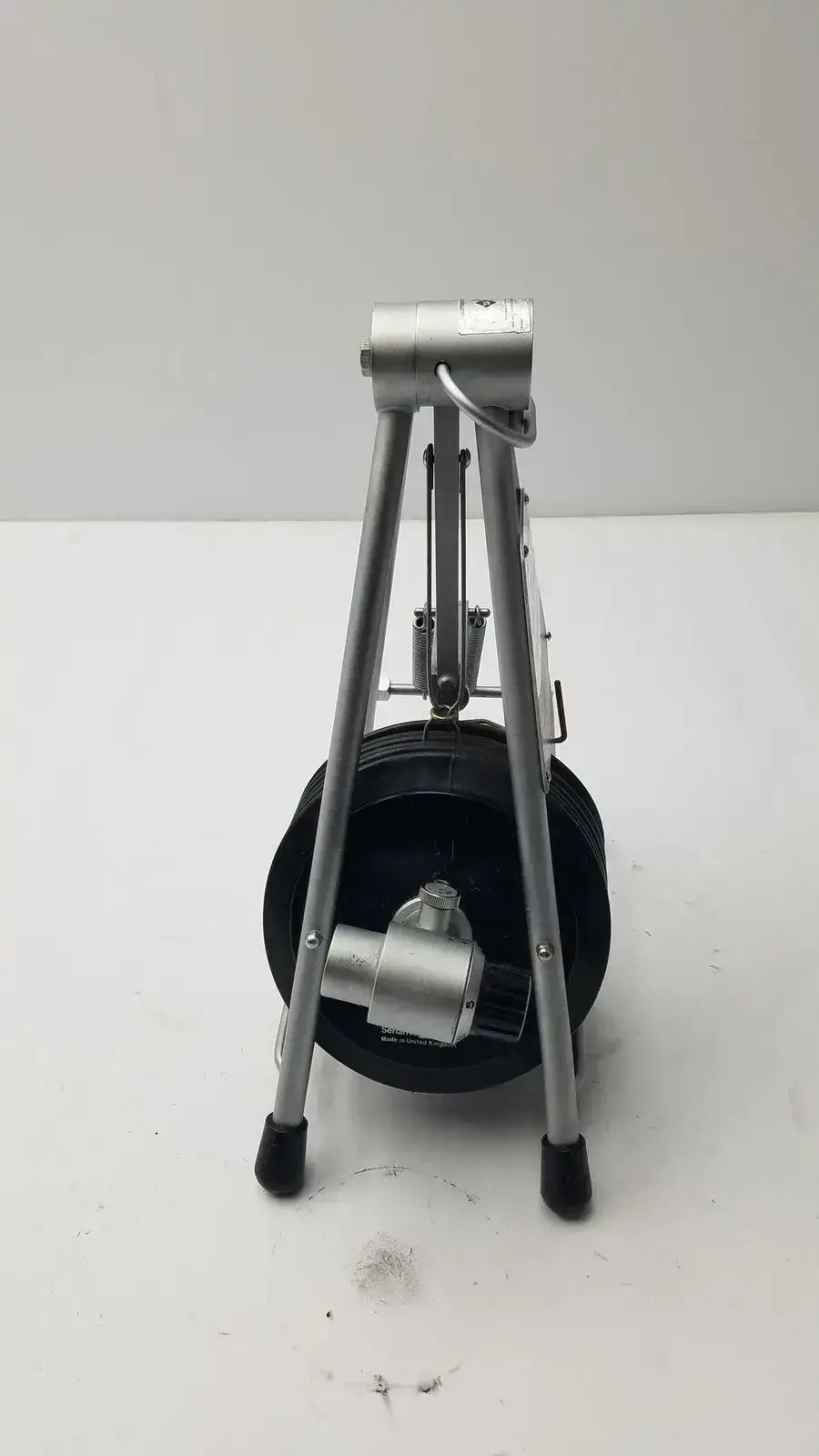

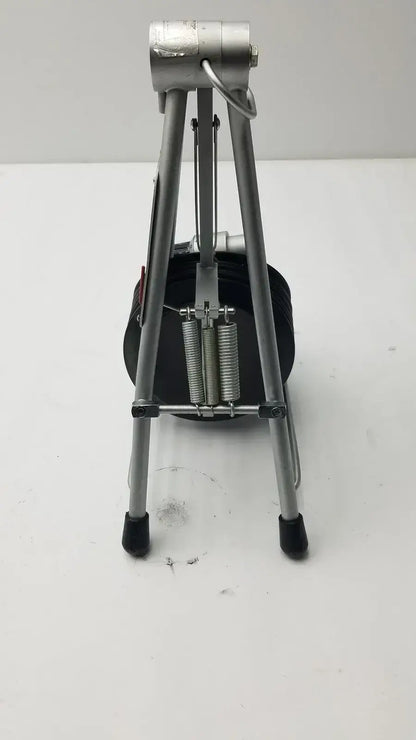

Ohmeda Lung Simulator

Description:
The Ohmeda Lung Simulator is a mechanical test lung designed to simulate human respiratory mechanics, primarily used for testing and calibrating mechanical ventilators. It features adjustable compliance and airway resistance, allowing for the simulation of various pulmonary conditions.

Specifications:

• Model: LS122

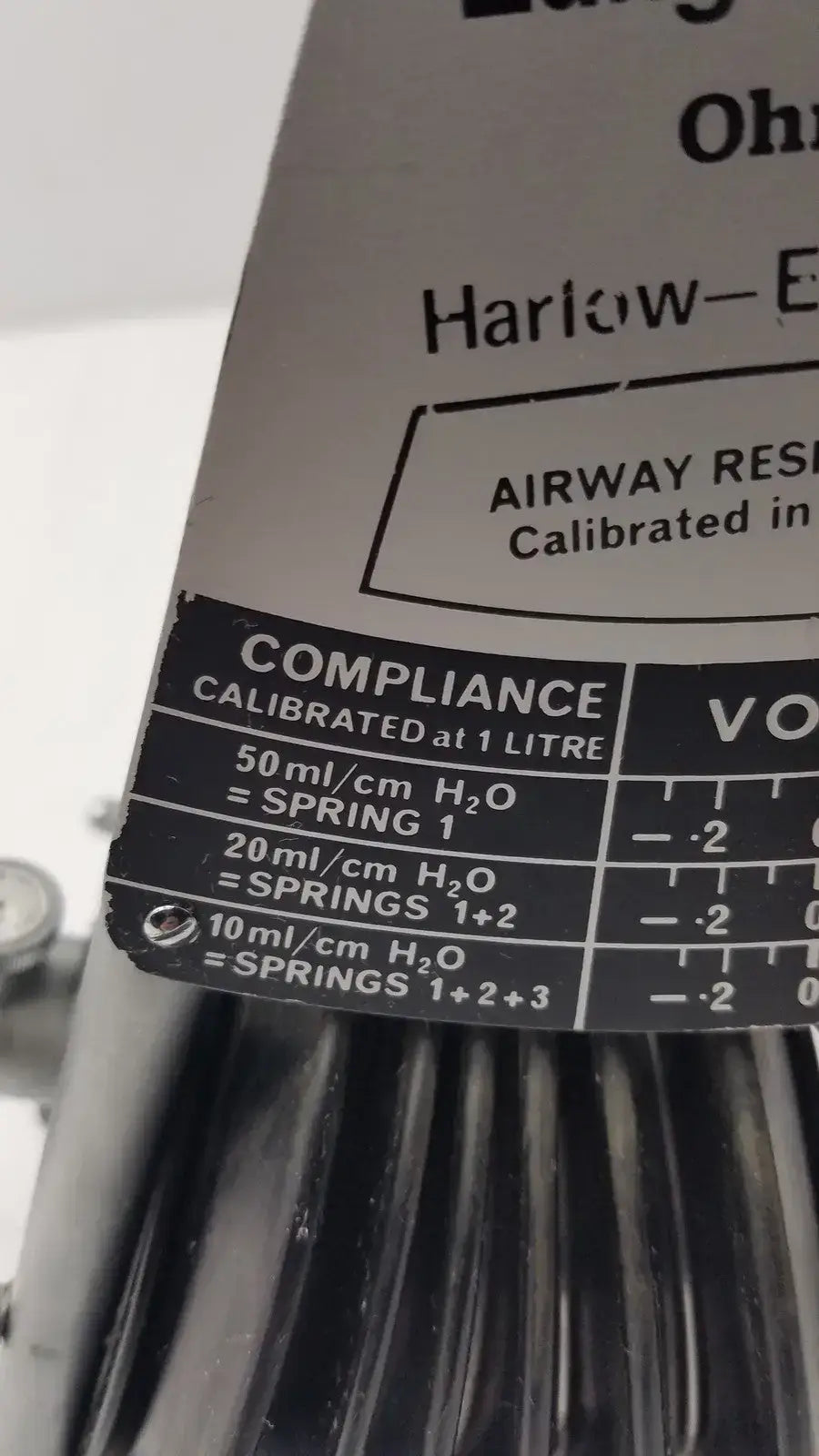

• Compliance Range: 10, 20, 50 mL/cmH₂O

• Airway Resistance Settings: 0, 5, 20, 50, 200 cmH₂O/L/s

• Volume Range: -0.3 to +1.0 liter

• Weight: Approximately 3.8 kg

• Dimensions: 146 x 276 x 352 mm

• Connection Type: BS/ISO compatible 22mm socket

• Noise Level: <70 dB at 1 meter

• Calibration: Factory calibrated with a certificate; recalibration recommended for precise measurements

• Maintenance: Regular servicing may include replacing springs, pressure gauges, and bellows components

Features:

• Adjustable Compliance and Resistance: Allows simulation of various lung conditions by adjusting compliance and airway resistance settings.

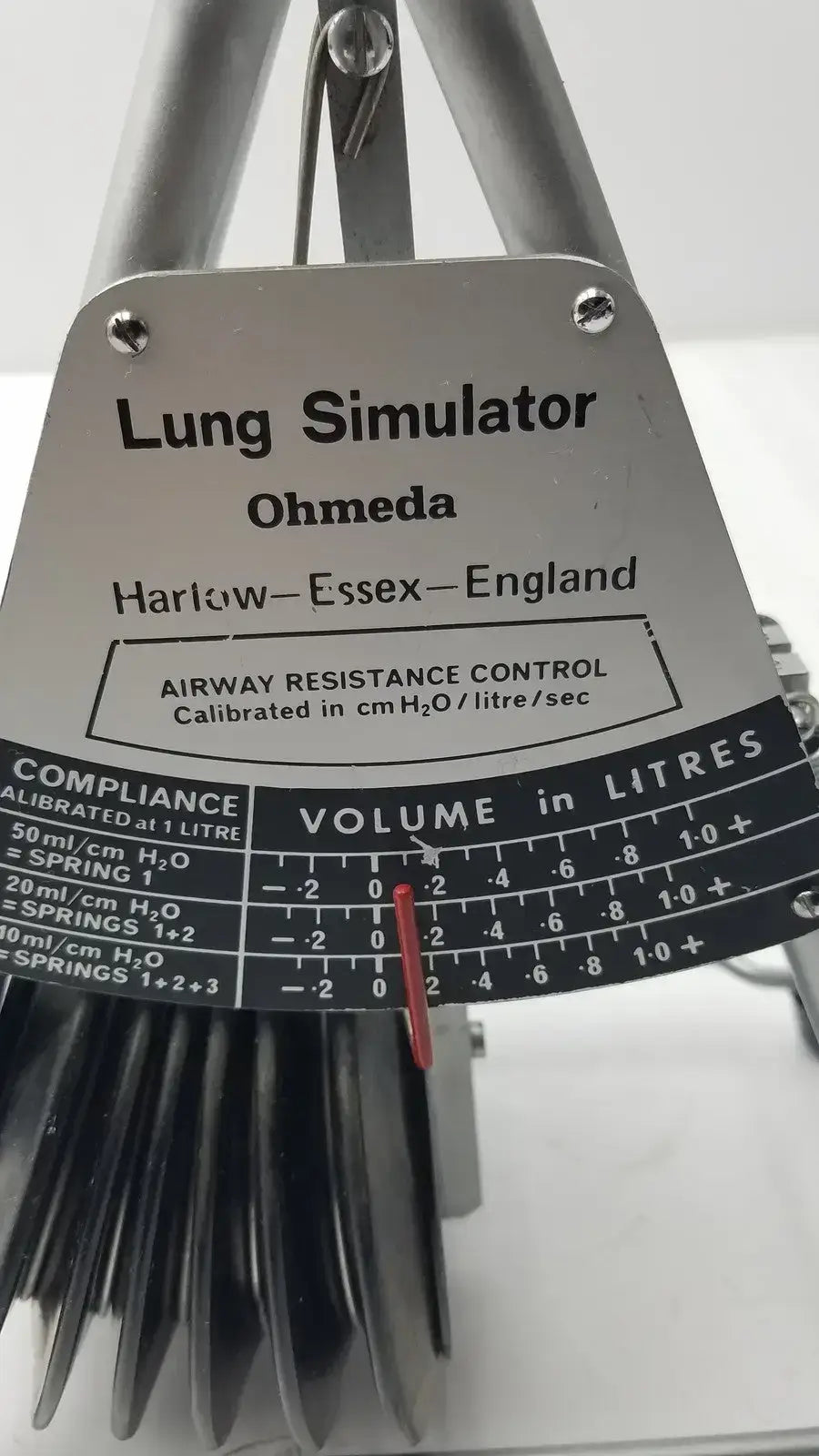

• Integrated Pressure and Volume Monitoring: Equipped with a pressure gauge and volume scale for real-time monitoring during testing.

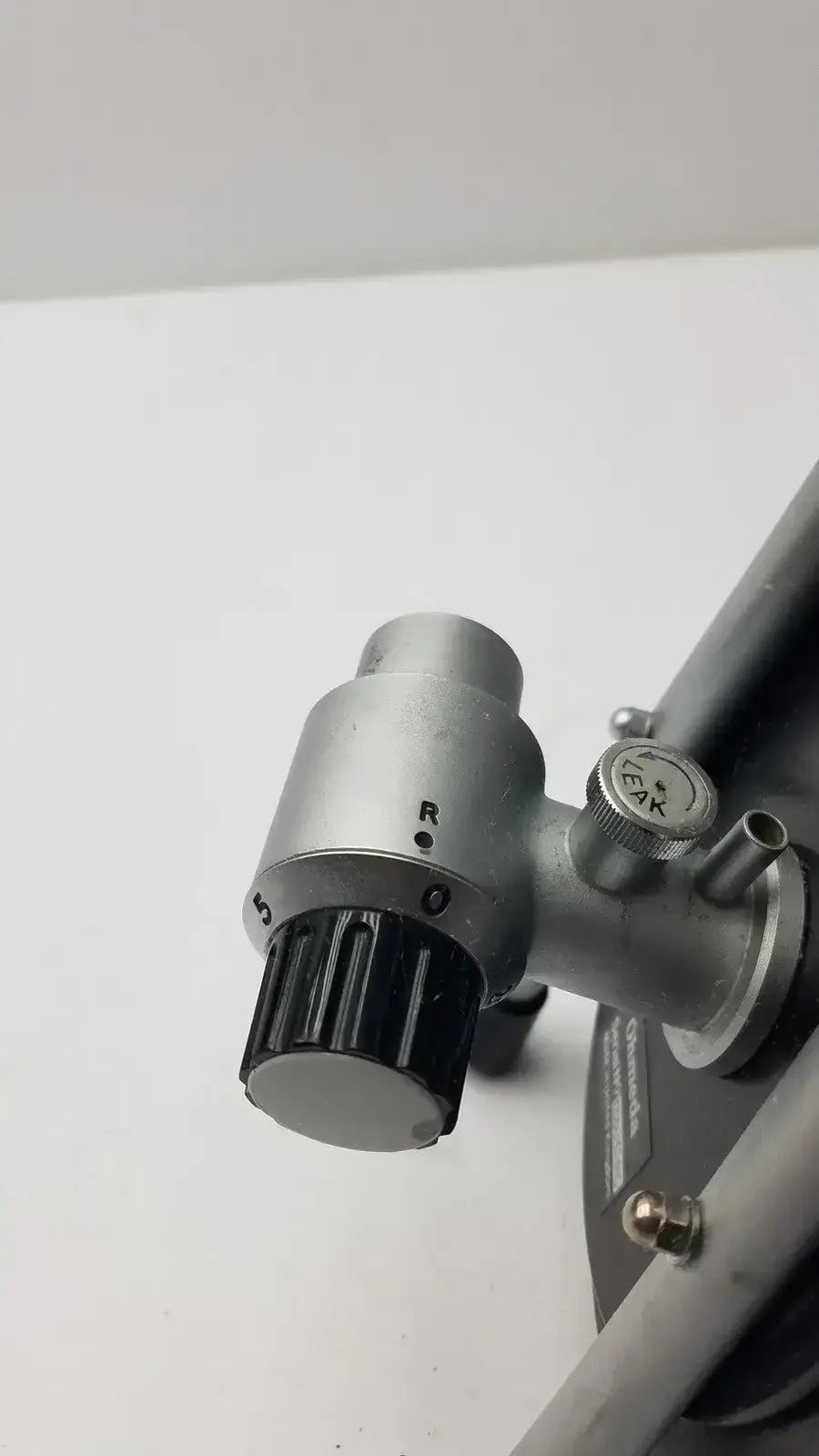

• Leak Control Valve: Includes a variable leak control to simulate breathing circuit leaks.

• Durable Construction: Built to withstand regular use in clinical and training environments.

• Compact Design: Space-saving unit suitable for various laboratory setups.

• Condition: Brand New
