Description:

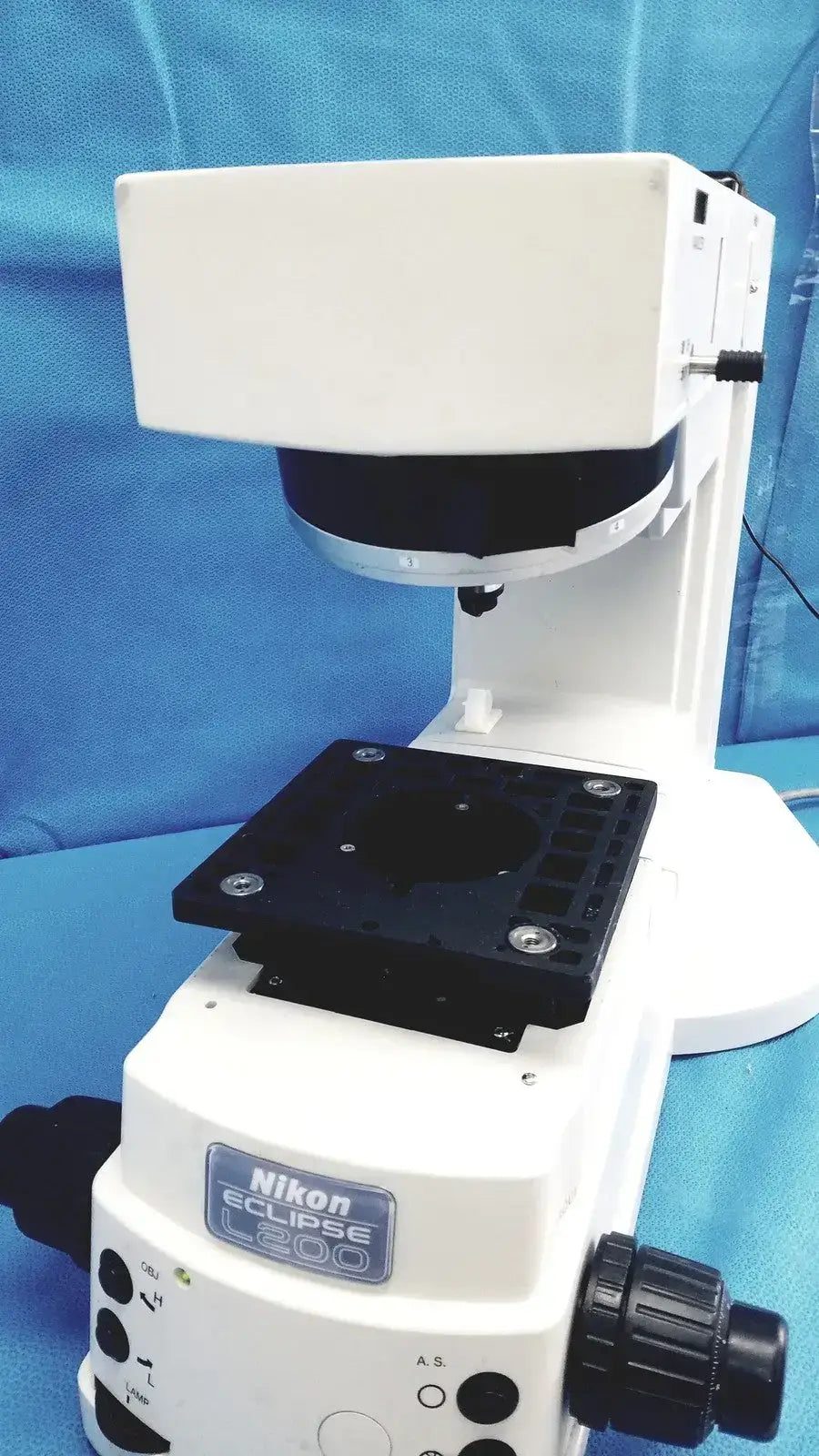

The Nikon Eclipse L200 is a high-precision optical inspection microscope designed specifically for wafer and semiconductor analysis. Its advanced optical system provides clear, high-contrast imaging suitable for detailed inspections in cleanroom and laboratory environments.
Specifications:
Manufacturer: Nikon
Type: Upright optical inspection microscope
Application: Wafer and semiconductor inspection

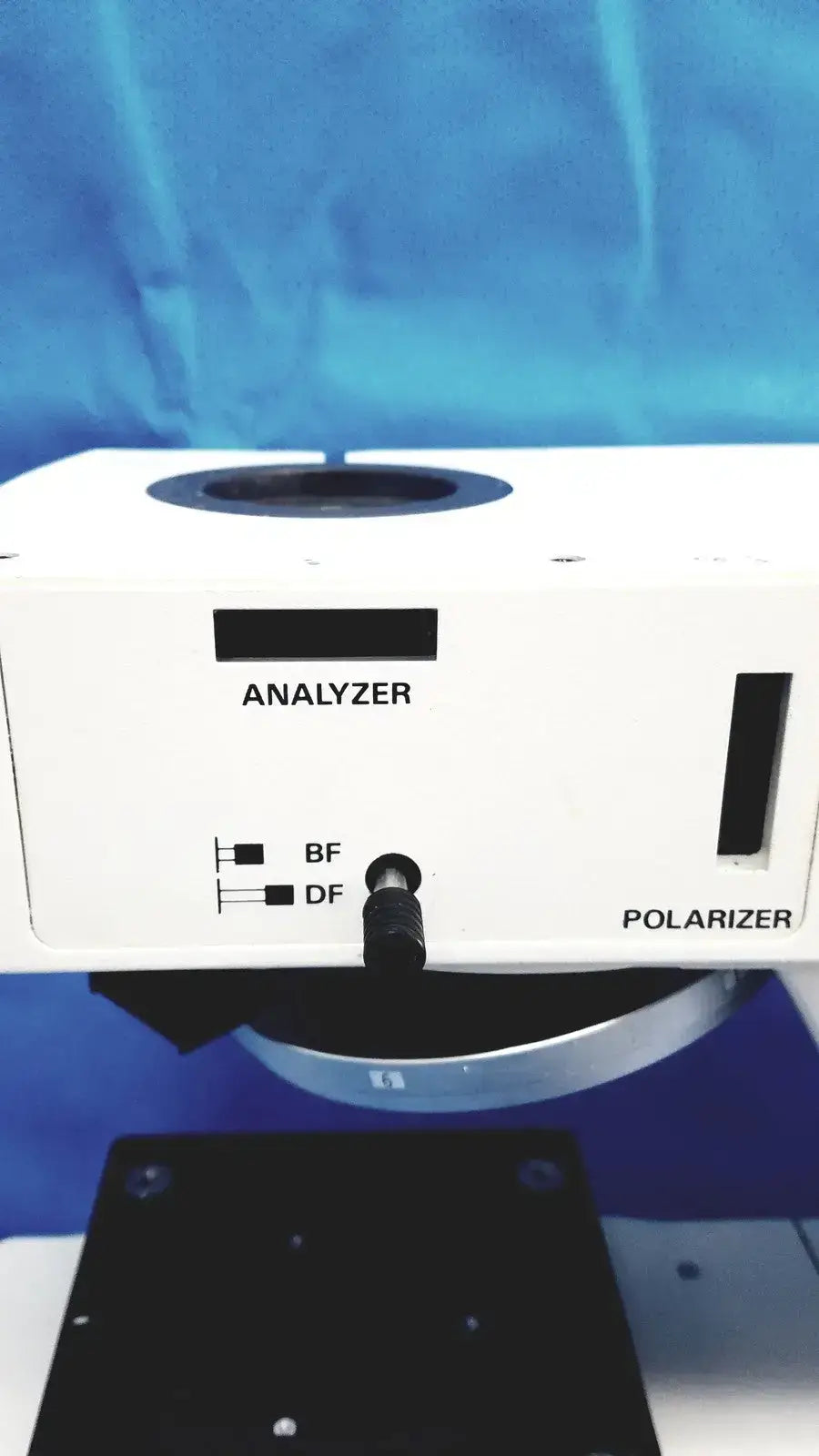

Illumination: Brightfield and darkfield compatible
Objective Compatibility: Supports multiple high-magnification objectives

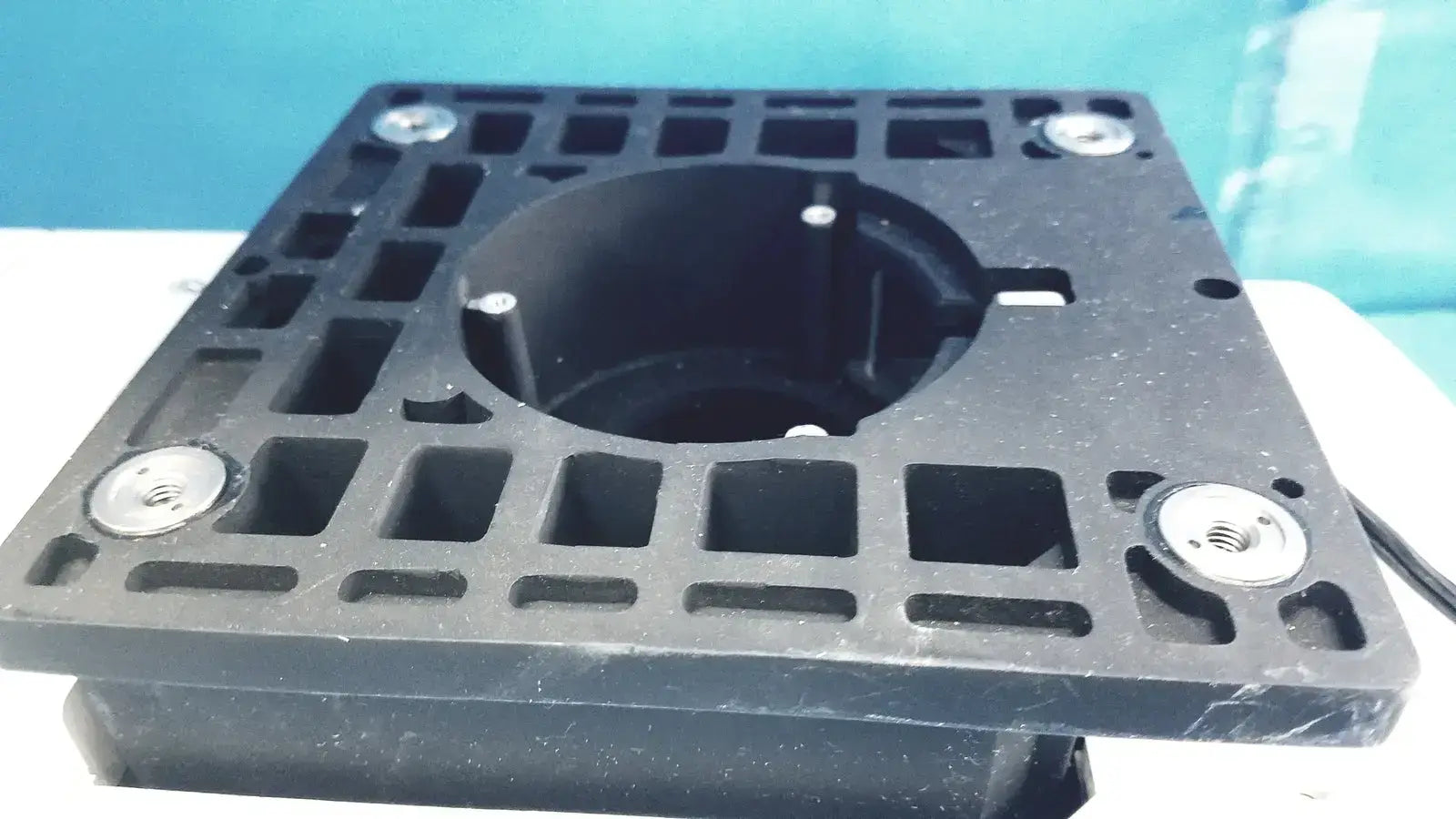

Stage: Motorized or manual wafer stage (varies by configuration)

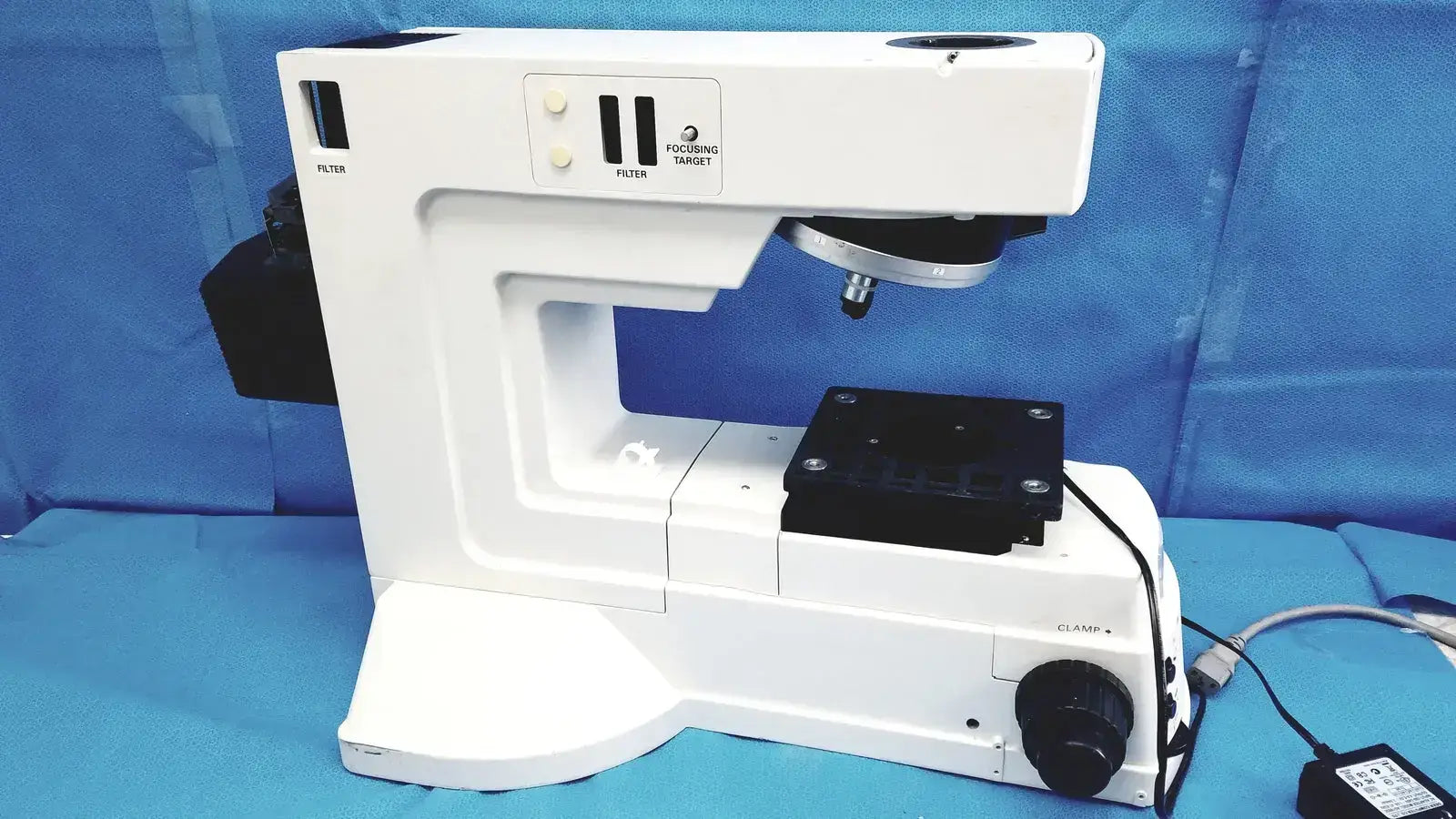

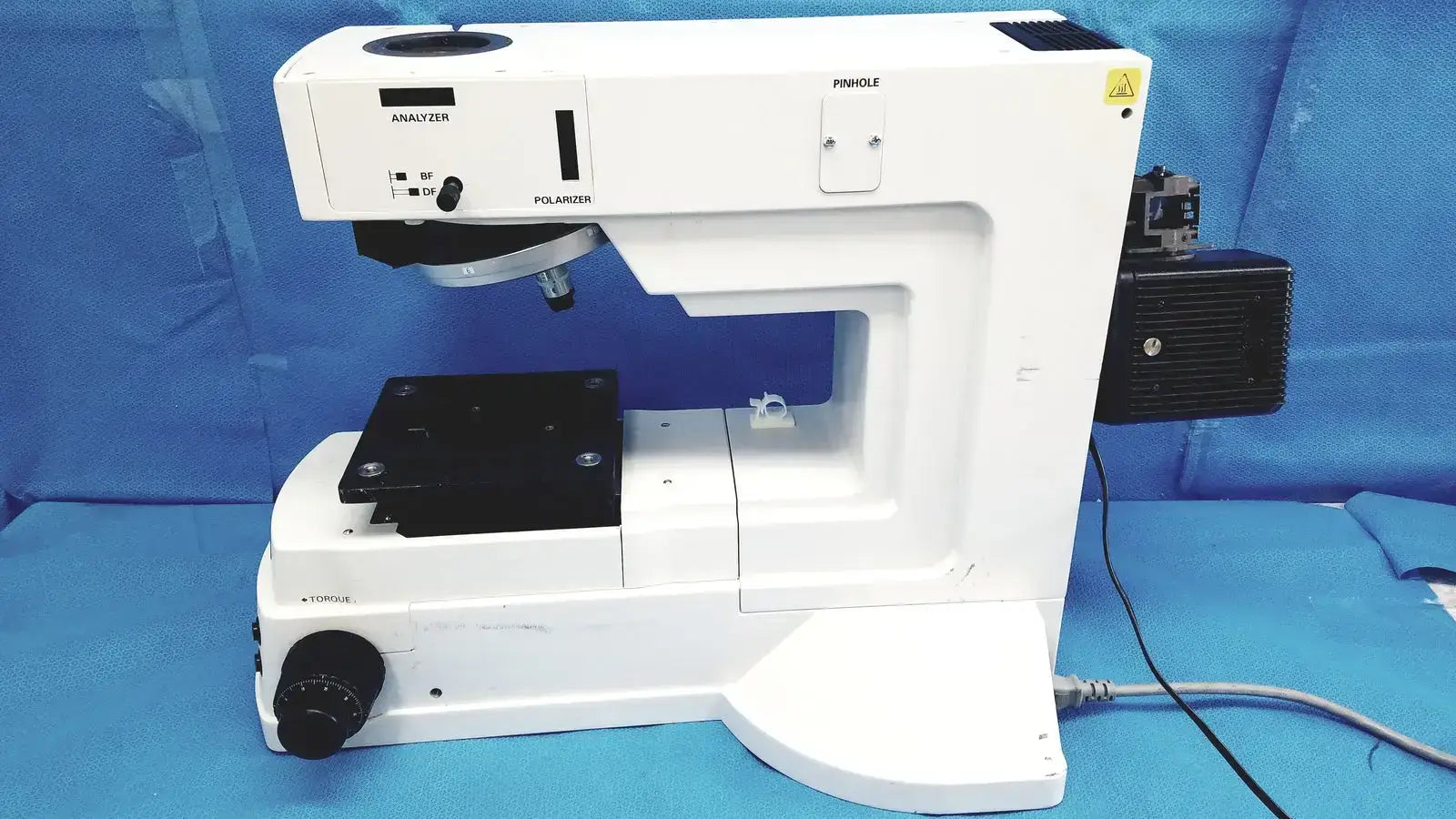

Microscope Body: Ergonomic design with modular optics
Features:
High-resolution imaging for detailed wafer inspection
Designed for cleanroom and industrial lab use
Modular configuration supports multiple contrast techniques
Stable frame for vibration resistance and accuracy

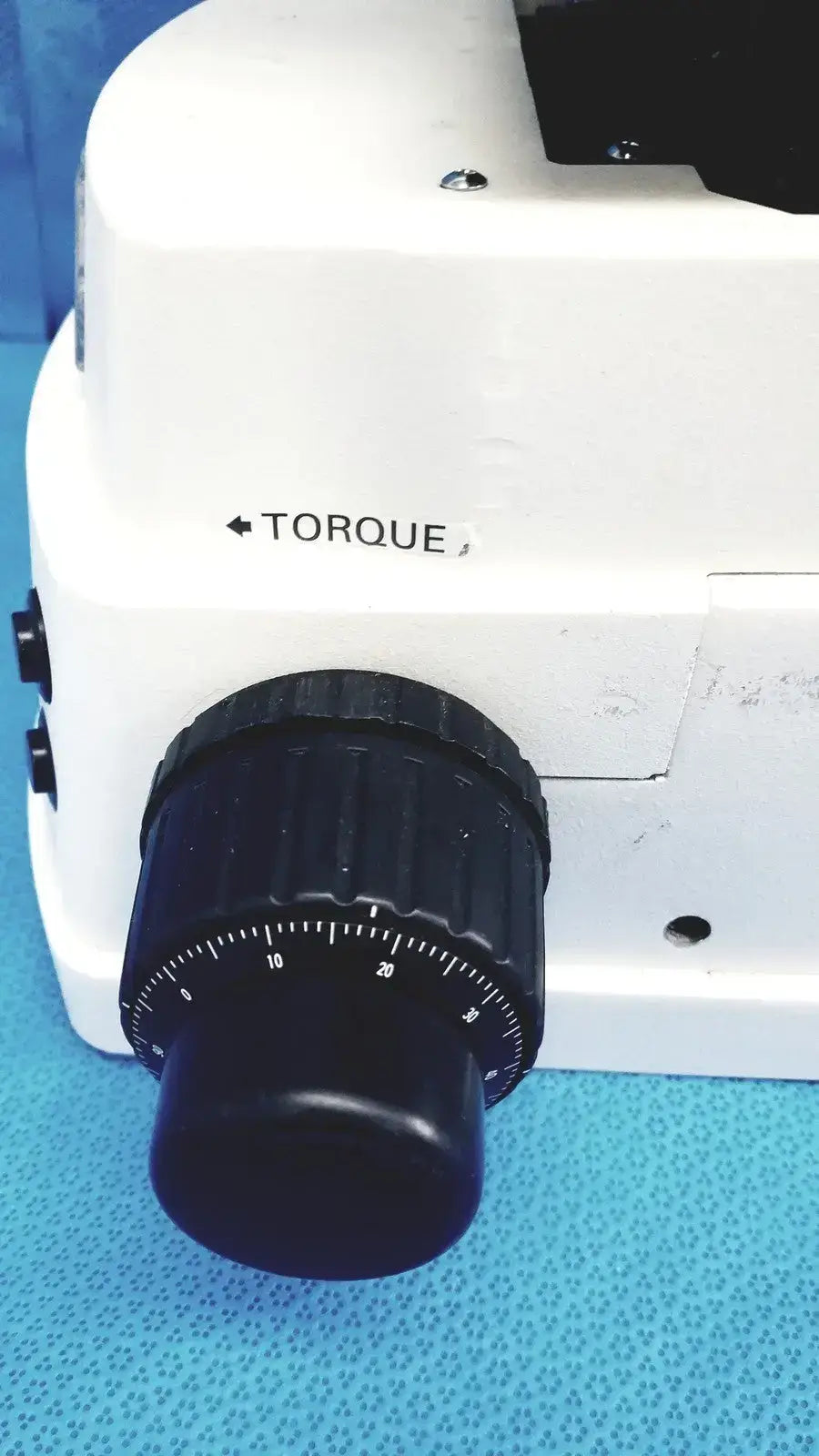

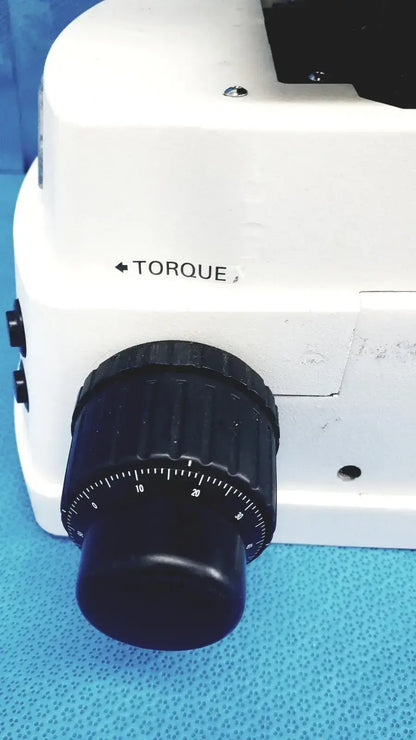

Precision focusing and XY stage movement
- Condition: Used
