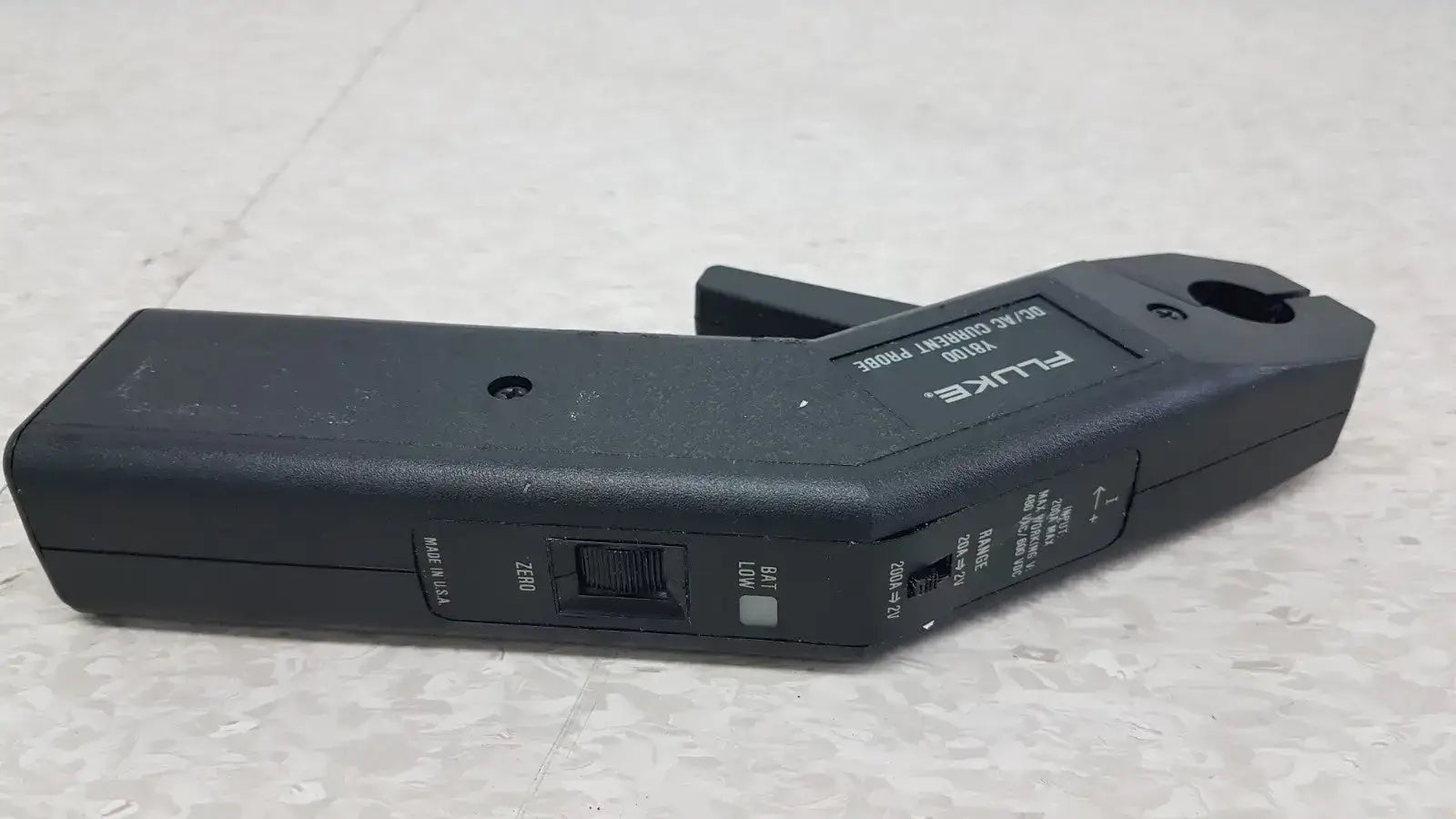

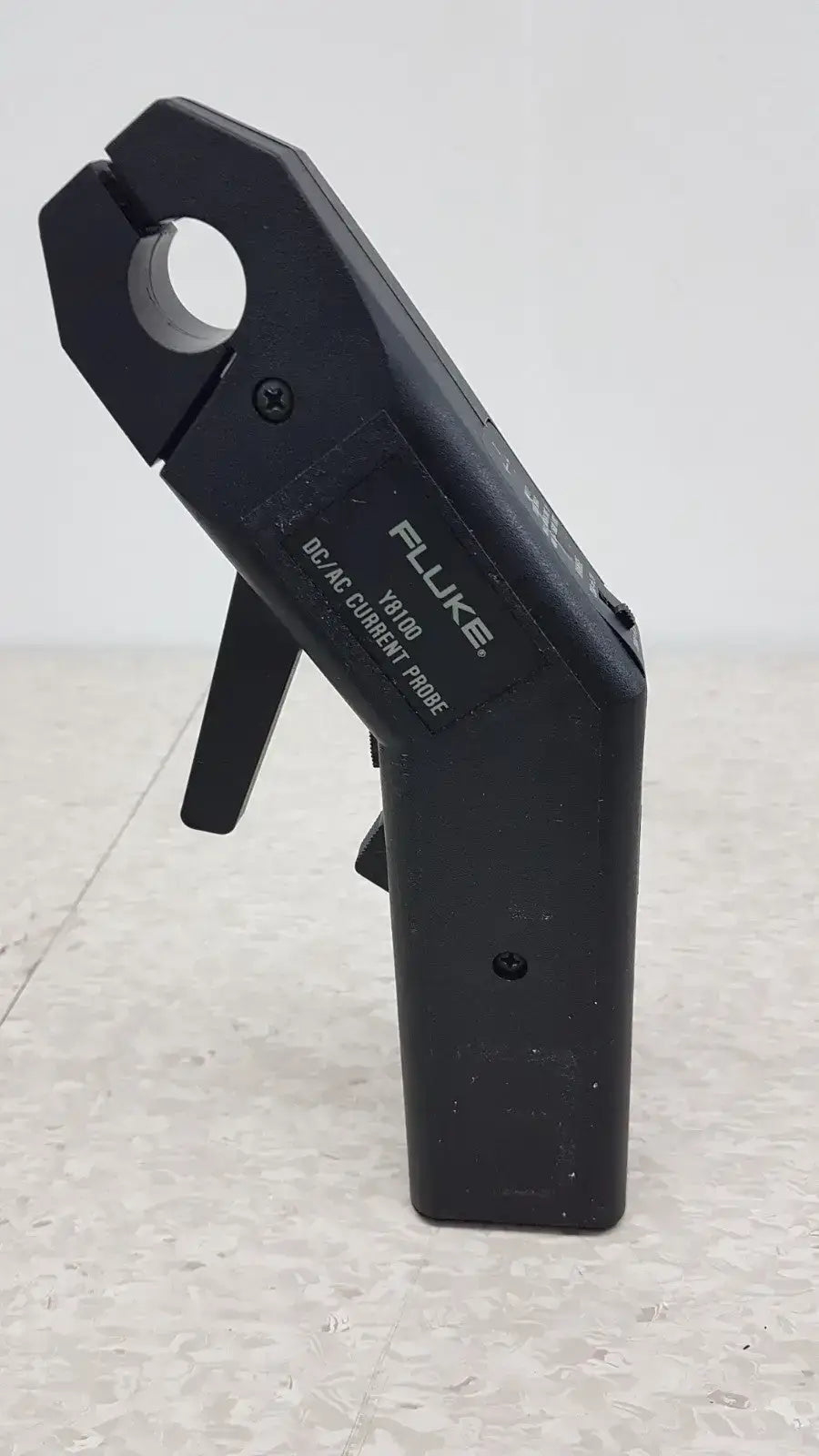

Fluke Y8100 DC/AC Current Probe

Description

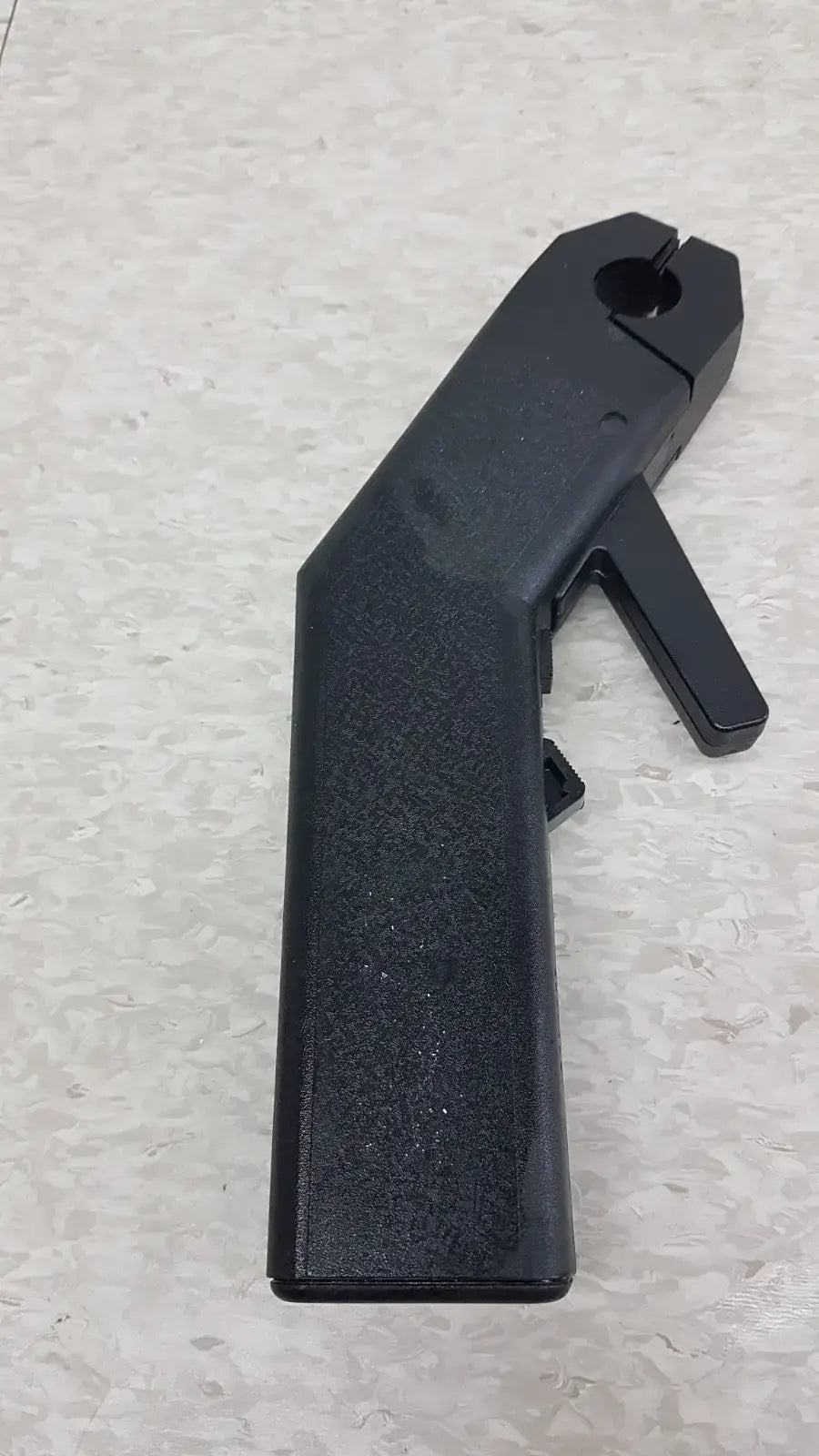

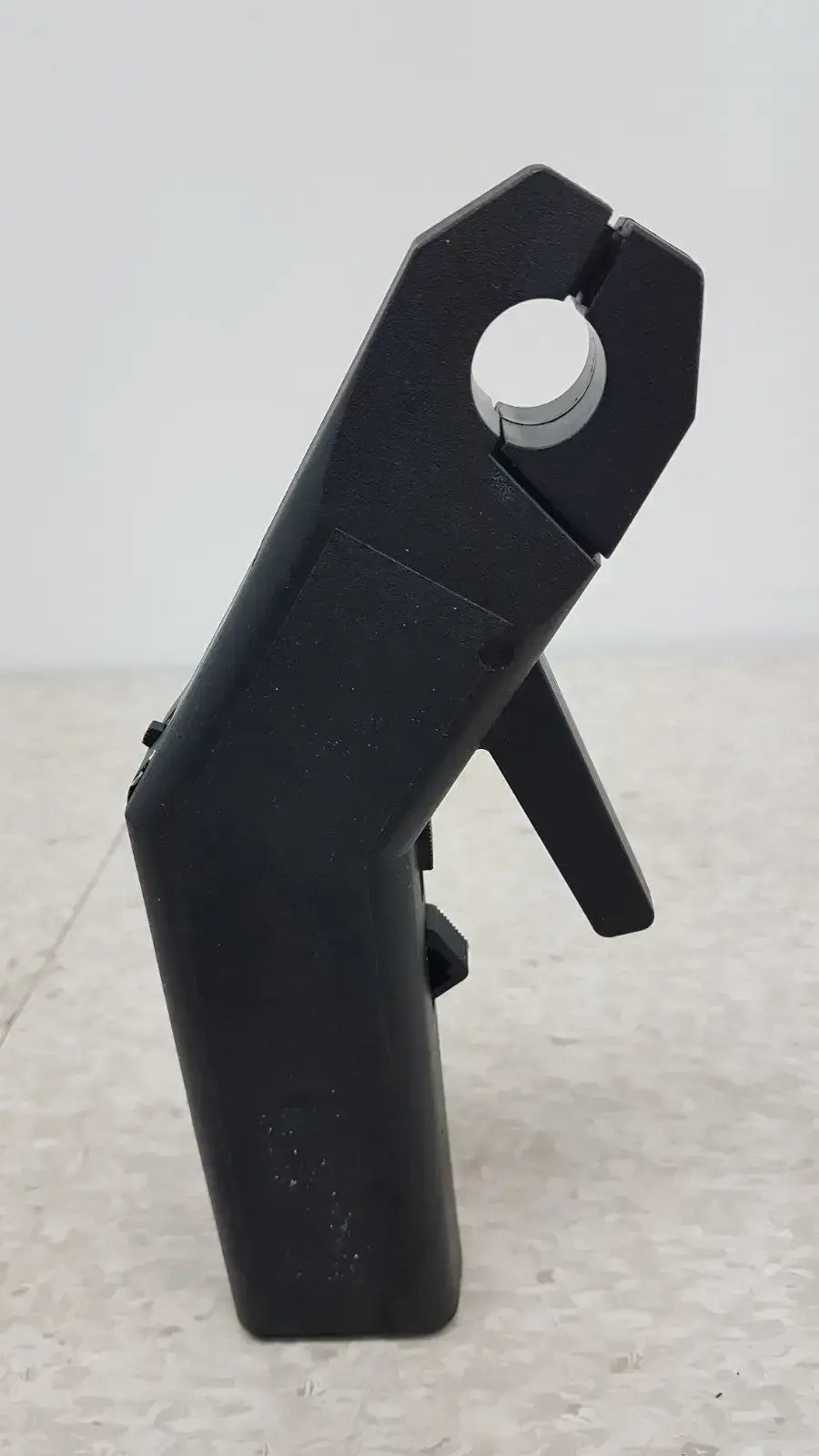

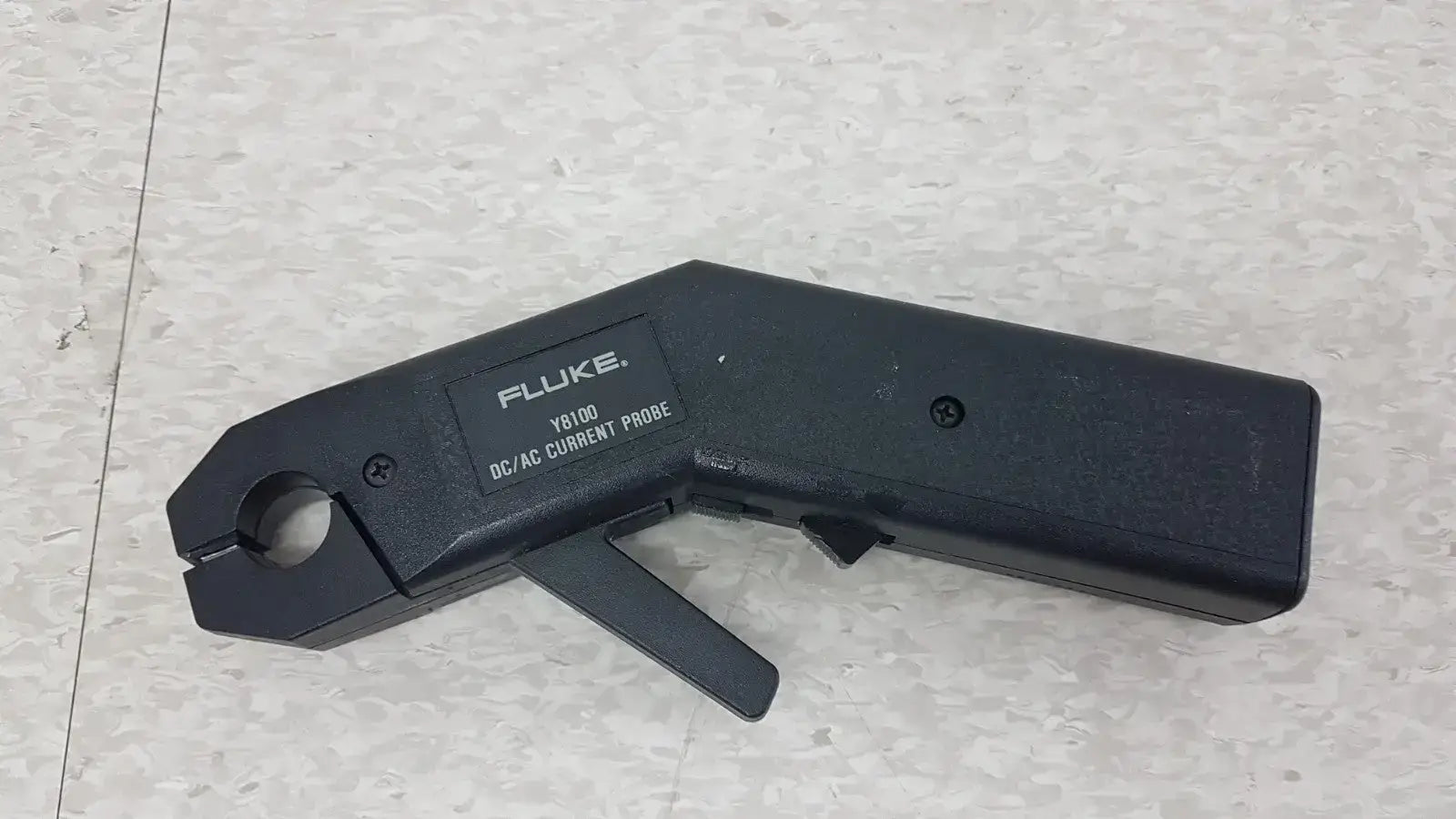

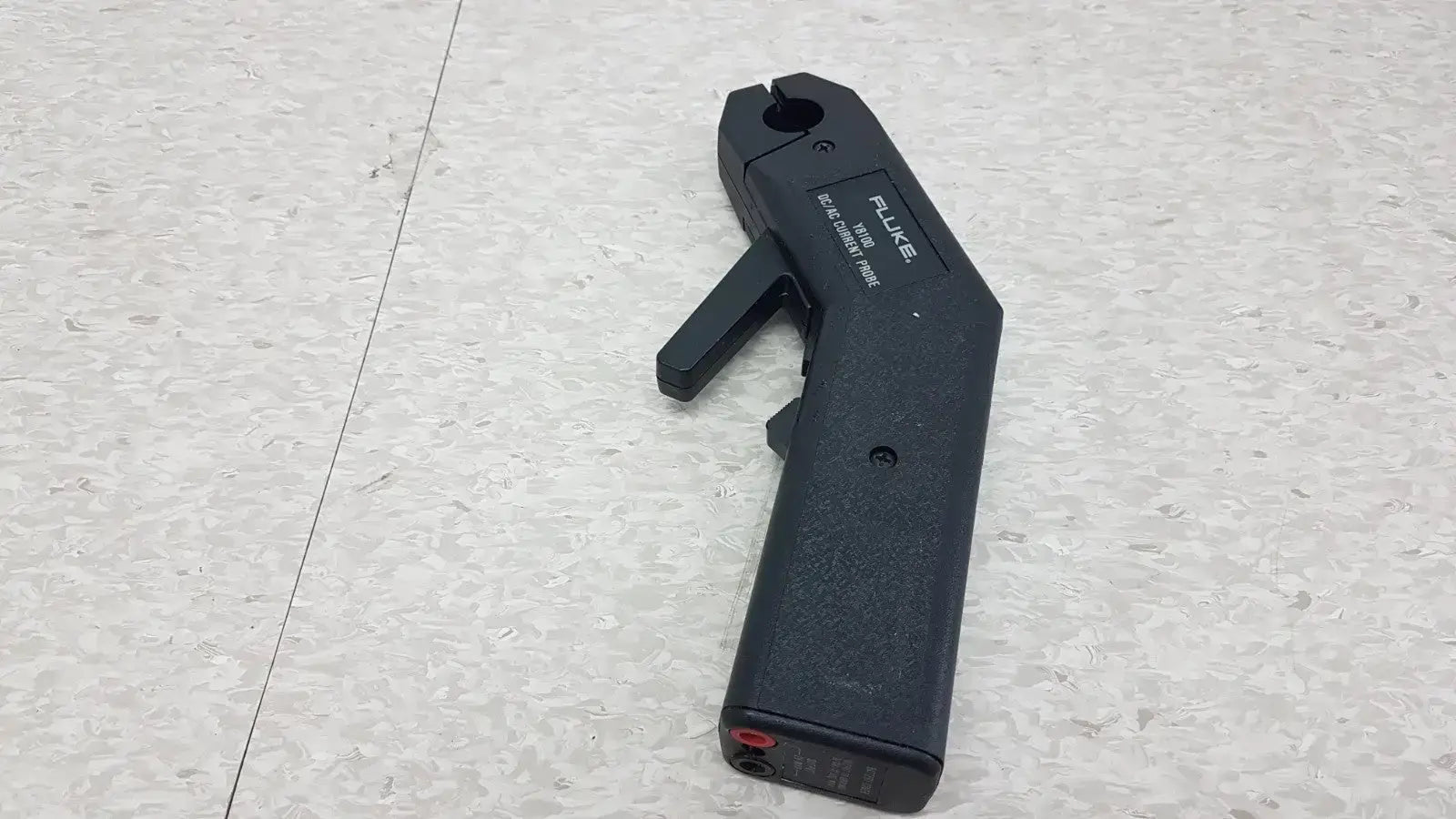

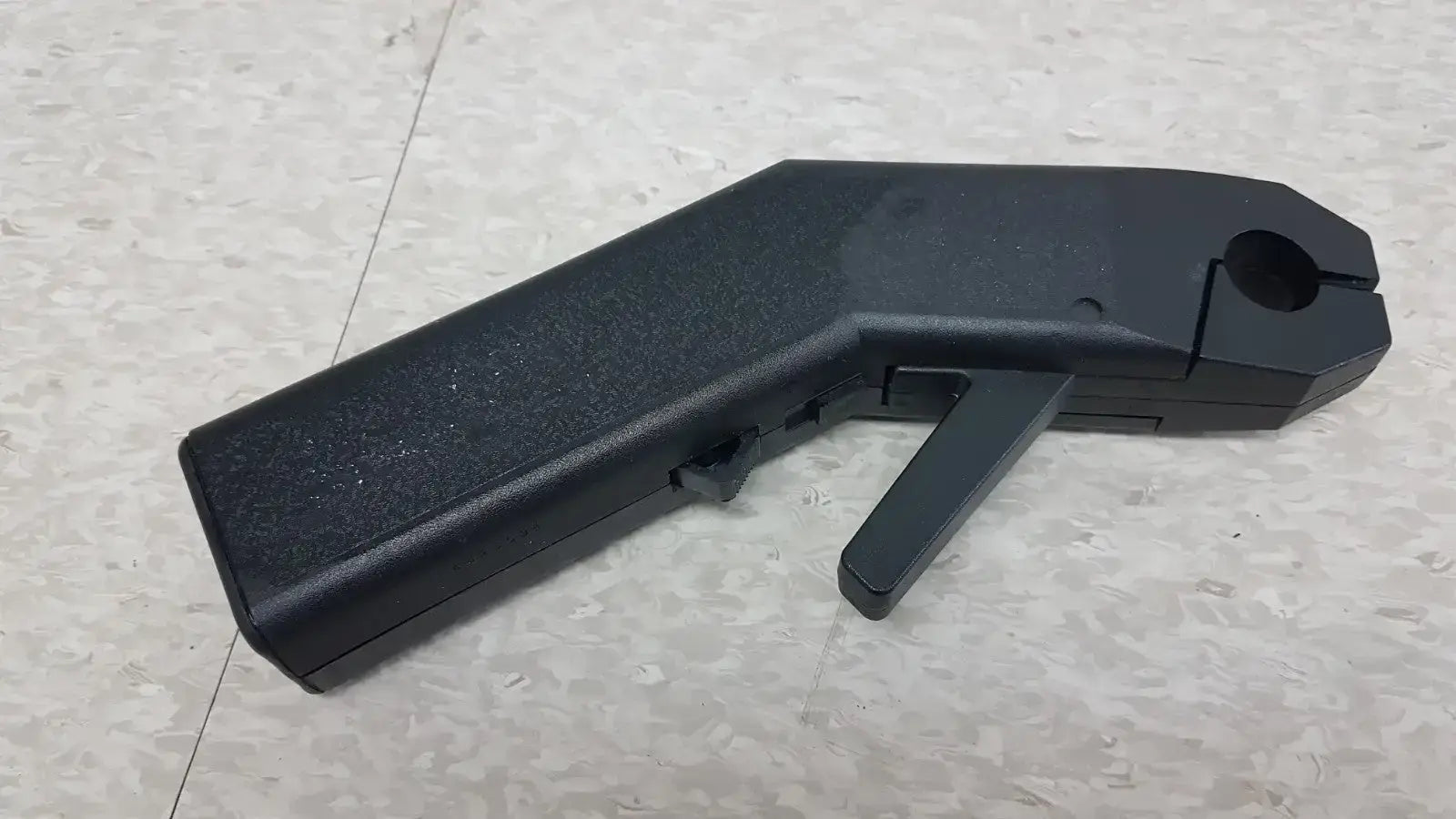

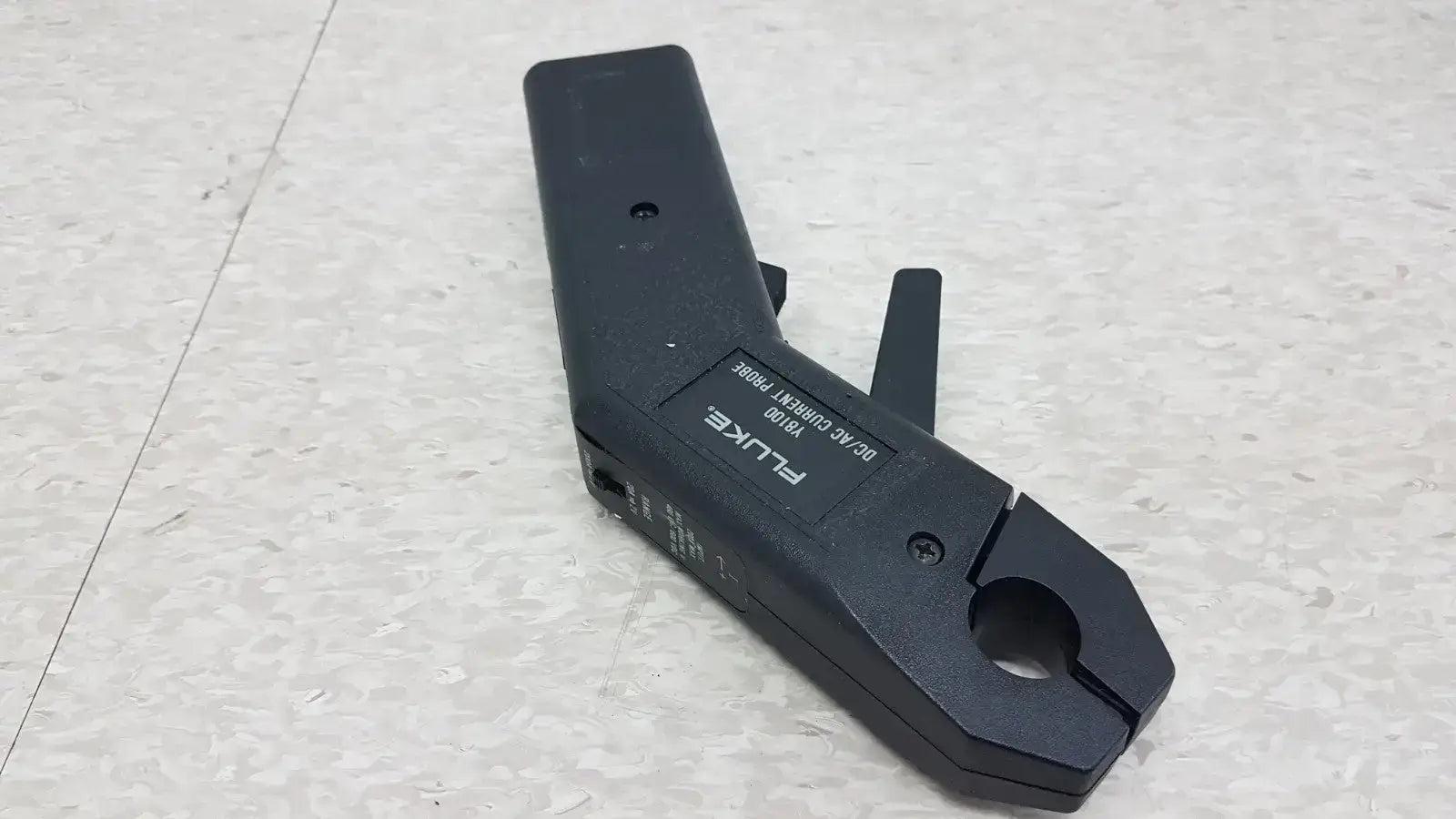

The Fluke Y8100 is a versatile clamp-on current probe designed for use with a voltmeter, multimeter, or oscilloscope. It is engineered to accurately measure both DC and AC currents, as well as composite (AC on DC) signals. The probe's pistol-shaped design allows for safe, easy, and one-handed operation. With its durable, high-impact plastic case and insulated jaws, it provides a reliable and secure way to measure current without breaking the circuit. A two-position range switch and a zero-adjustment thumbwheel offer flexibility and precision for a wide range of applications, from power supply ripple to ground current measurements.

Specifications

• Model: Y8100

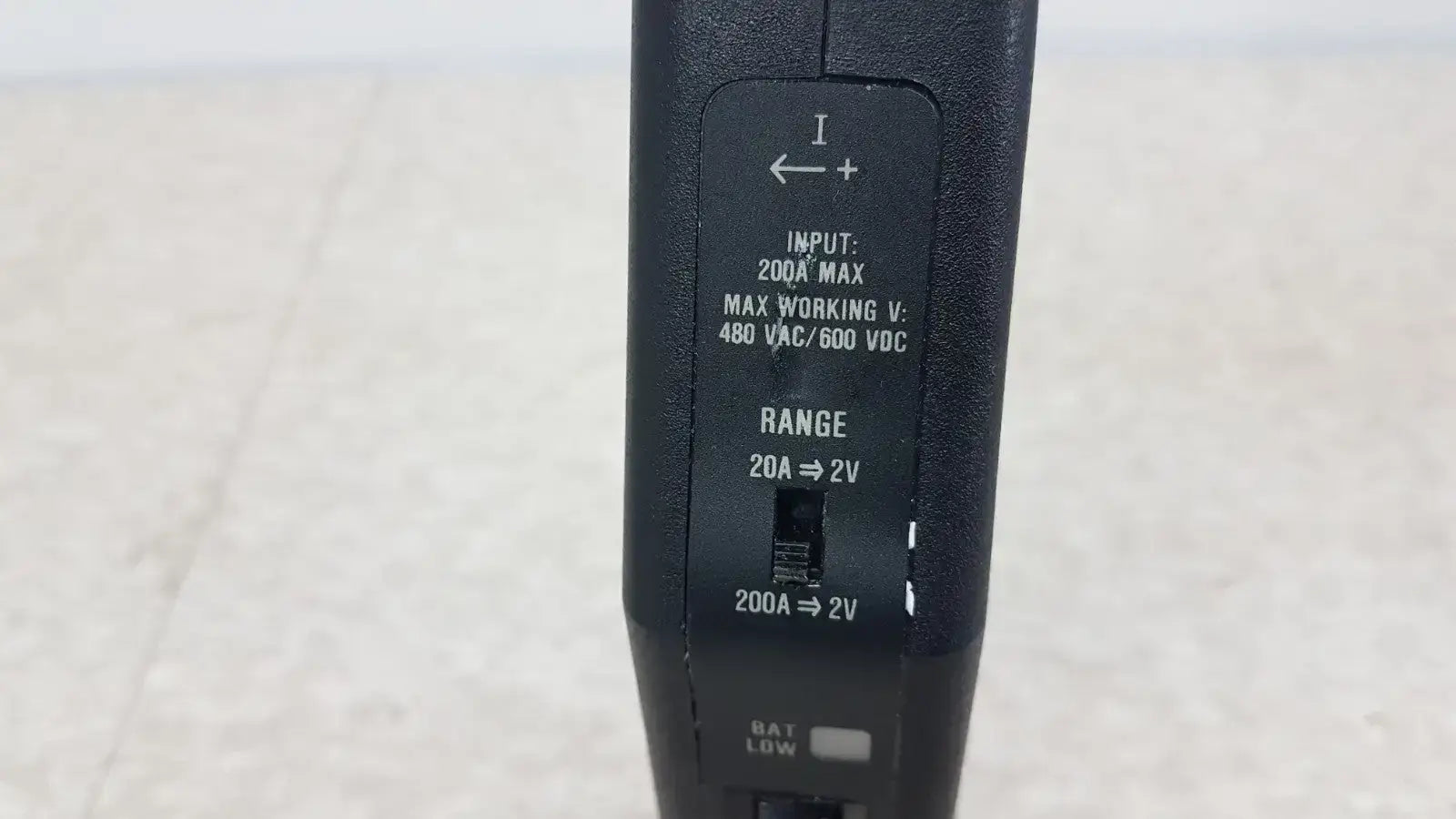

• Input: 200A max

• Max Working Voltage: 480V AC / 600V DC

• Ranges: 20A AC or DC, 200A AC or DC

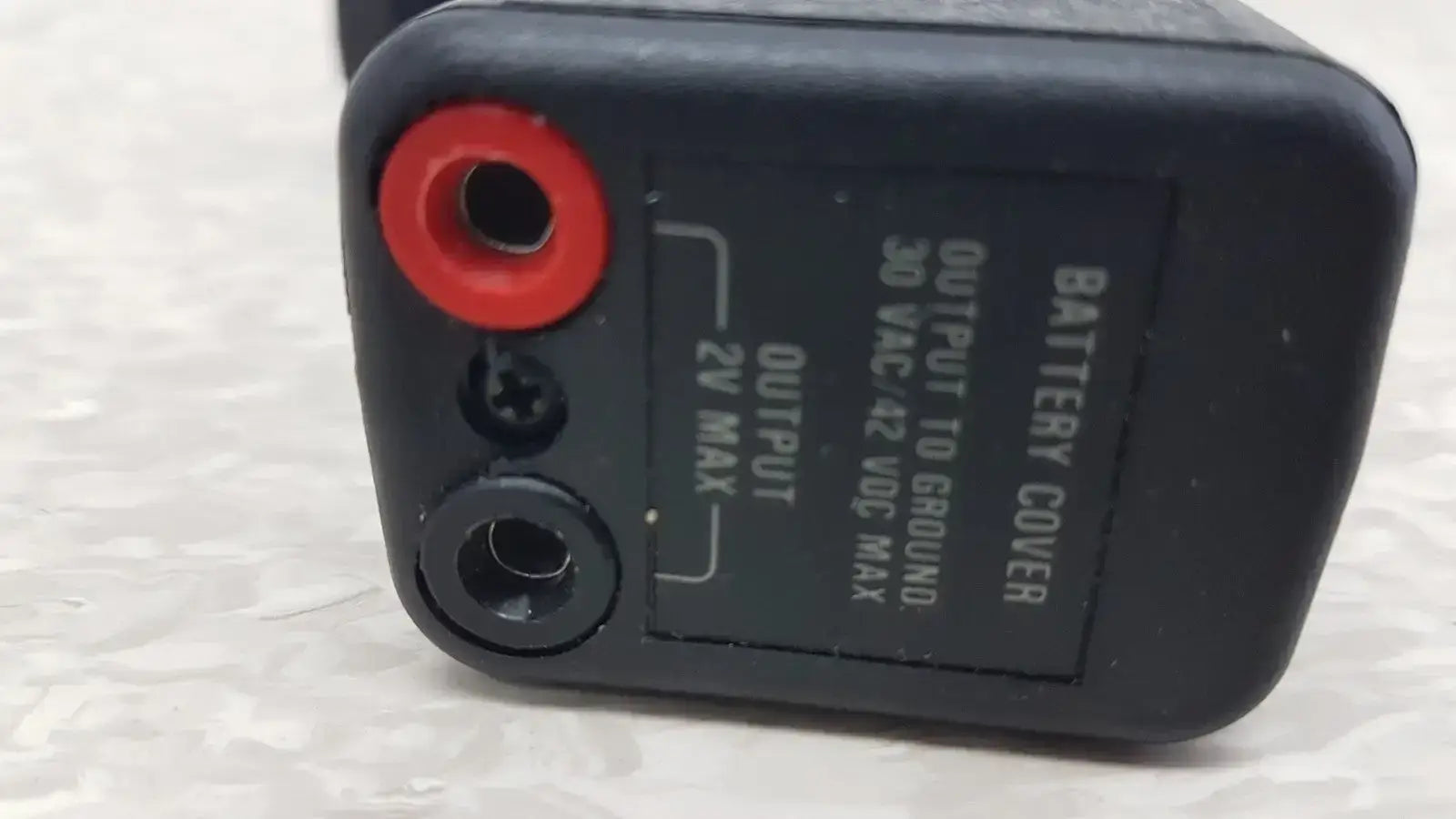

• Rated Output: 2V at full range

• Frequency Response: DC to 1.0 kHz

• Power: 4 "AA" cells

• Battery Life: 20 hours continuous (with alkaline batteries)

• Aperture Size: 3/4 inch (19 mm) diameter

Features

• Dual Measurement Capability: Measures both DC and AC current, making it highly versatile for various electrical tests.

• Two-Position Range Switch: Allows for quick and easy switching between 20A and 200A ranges.

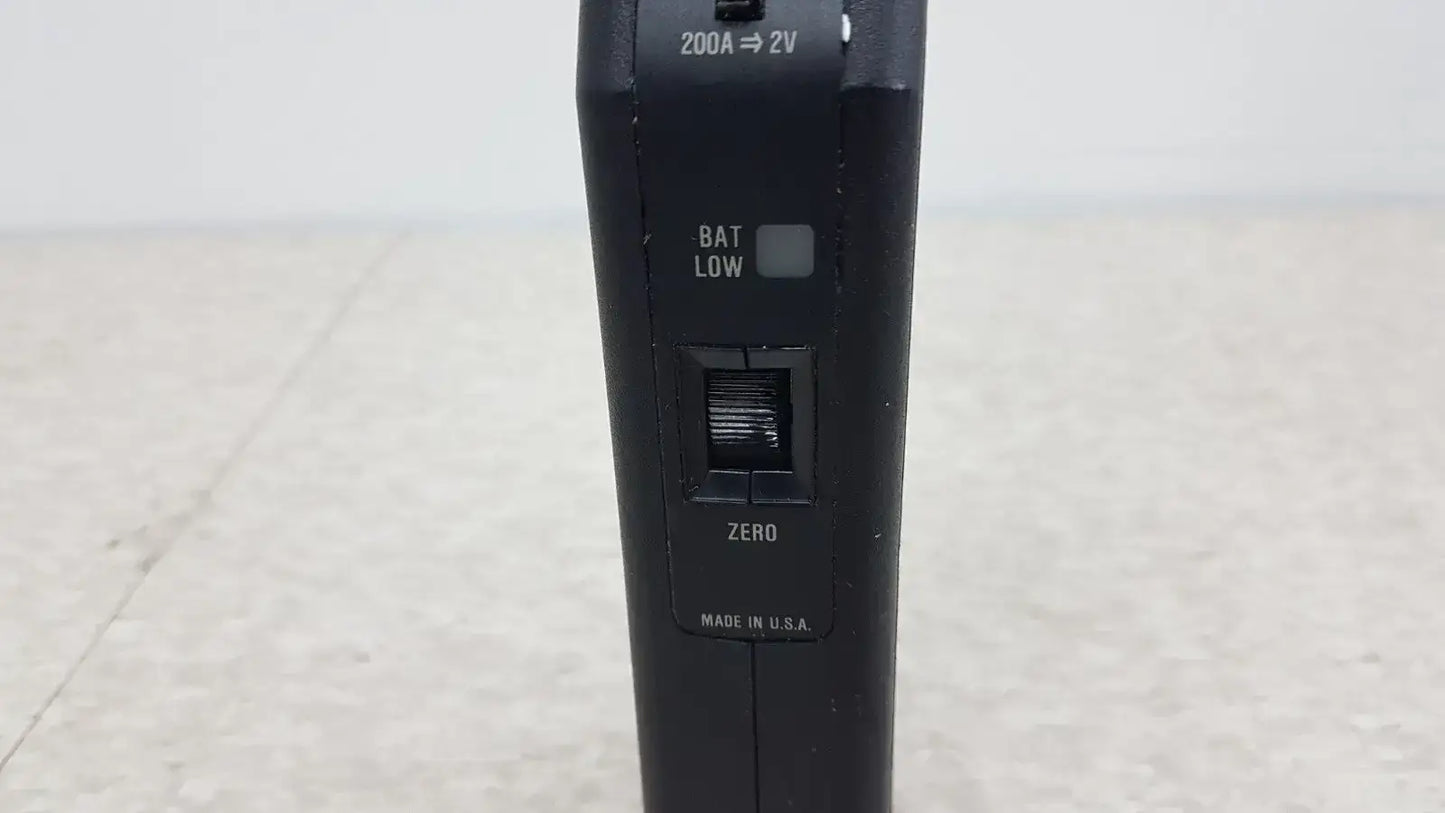

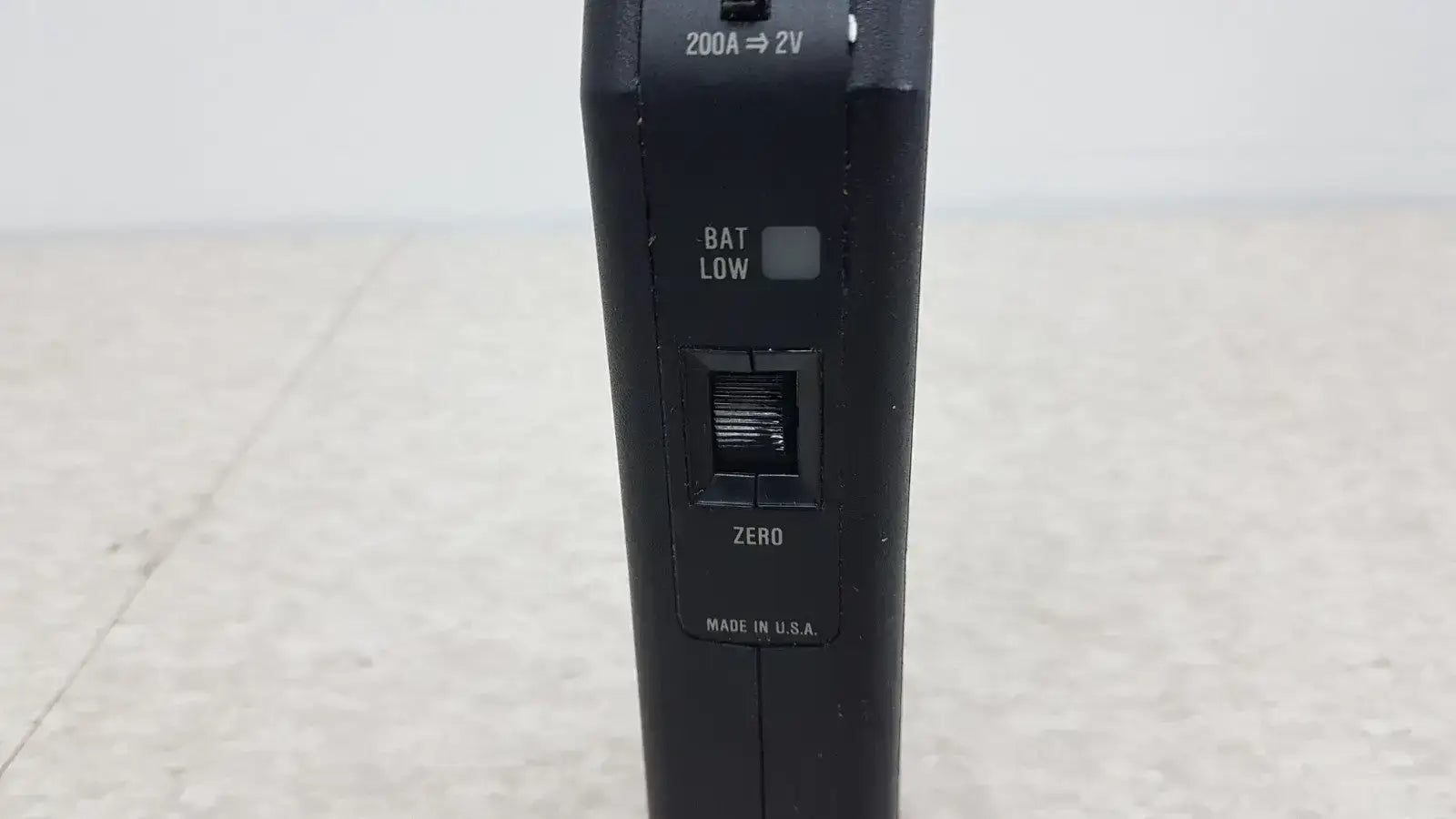

• Zero Adjustment Thumbwheel: Enables precise zeroing of the voltage output for accurate DC readings.

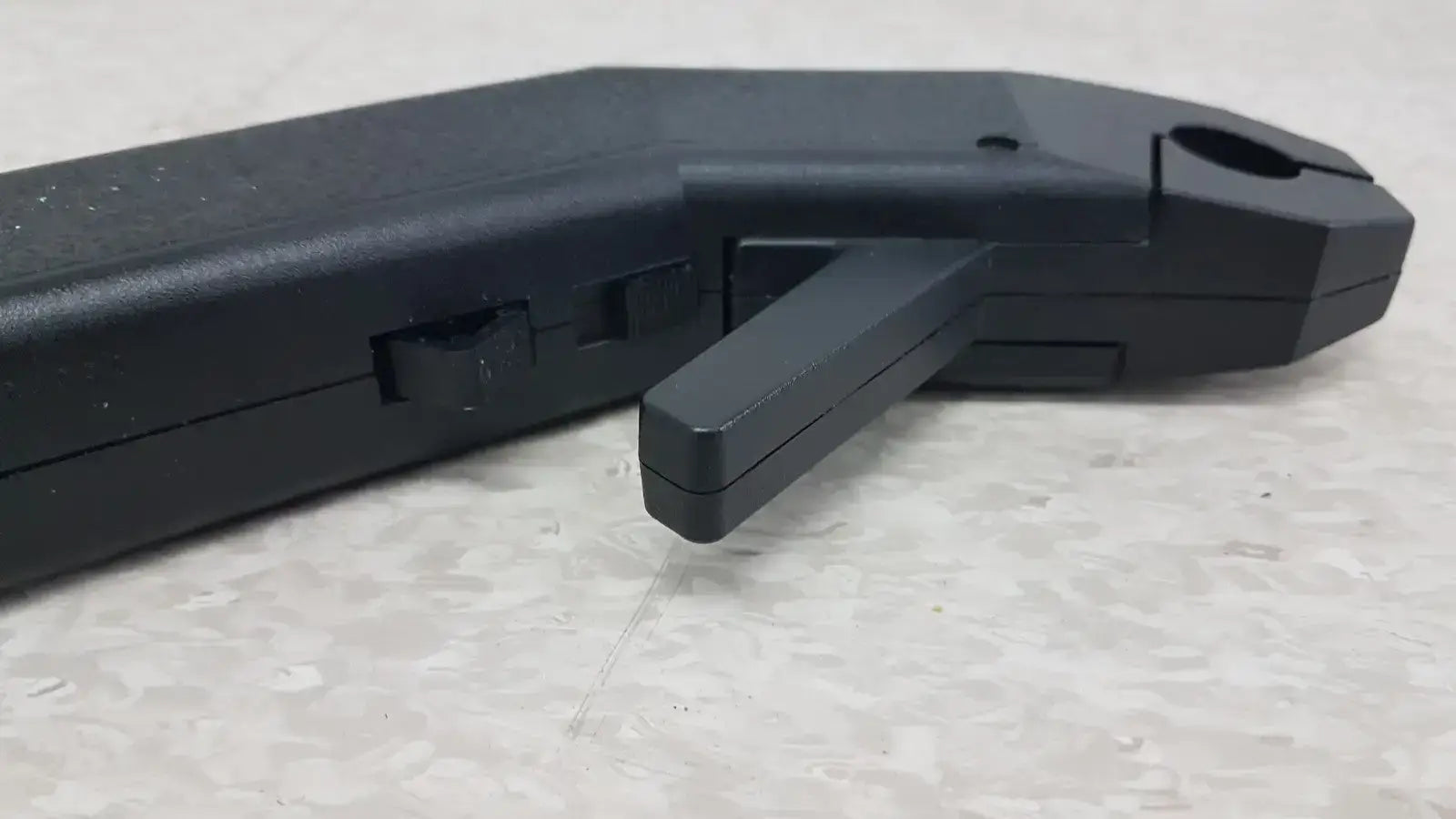

• Safety-Oriented Design: The insulated, clamp-on jaws and pistol grip allow for safe, one-handed operation without breaking the circuit.

• Battery-Low Indicator: A "BAT LOW" indicator light alerts the user when the battery voltage is insufficient for proper operation.

• Durable Construction: Built with a high-impact, high-dielectric plastic case for long-lasting use in demanding environments.

• Made in the USA: Manufactured in the United States, ensuring high quality and craftsmanship.

• Condition: Used
