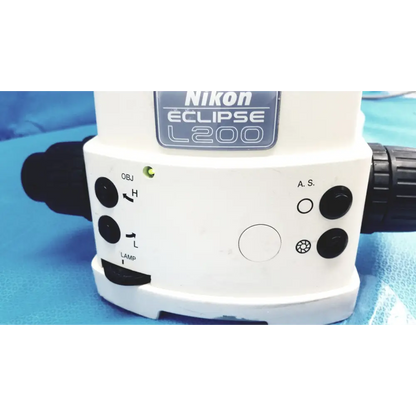

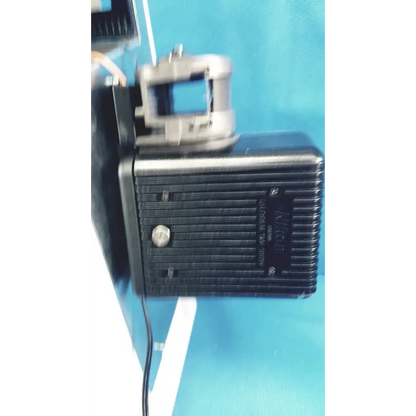

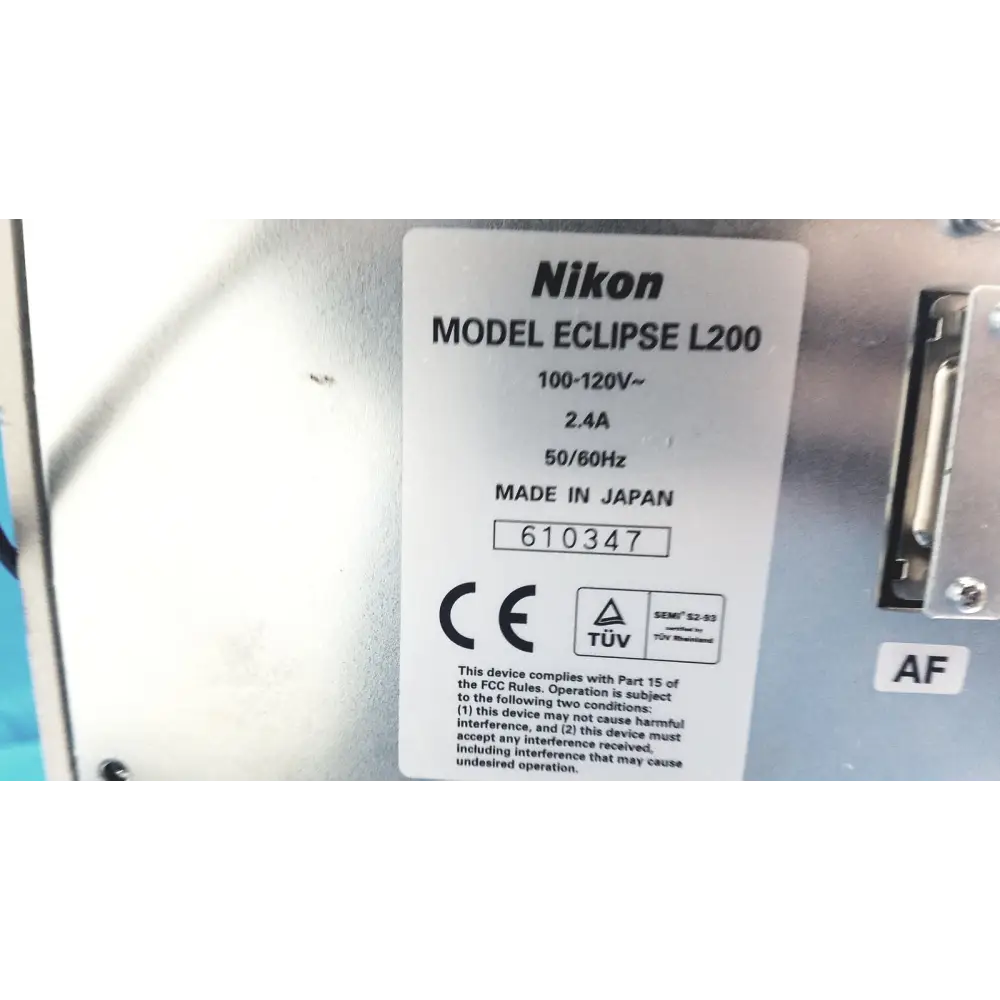

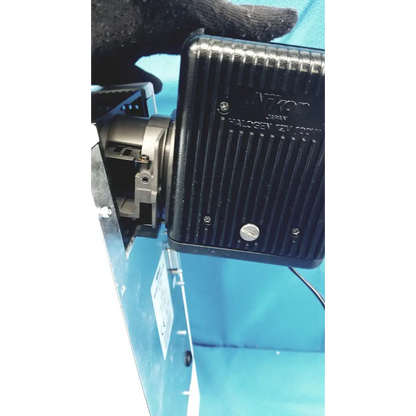

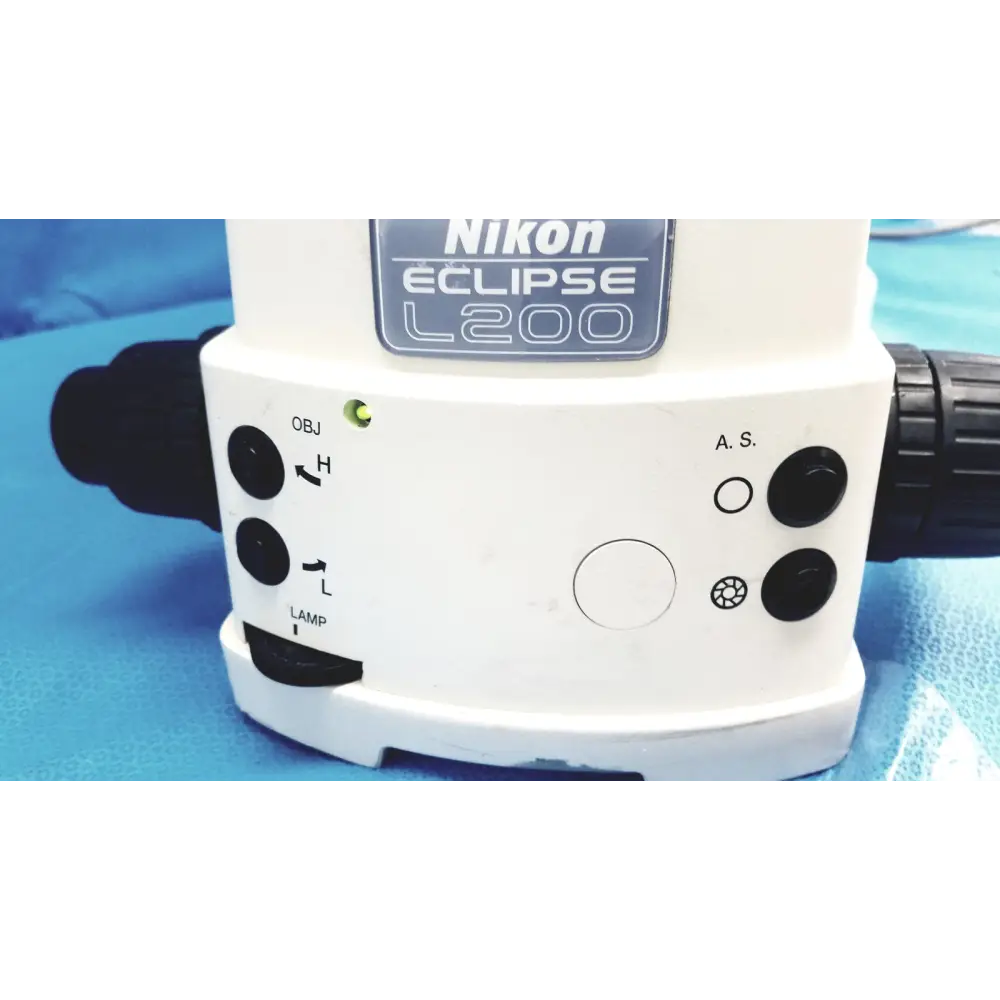

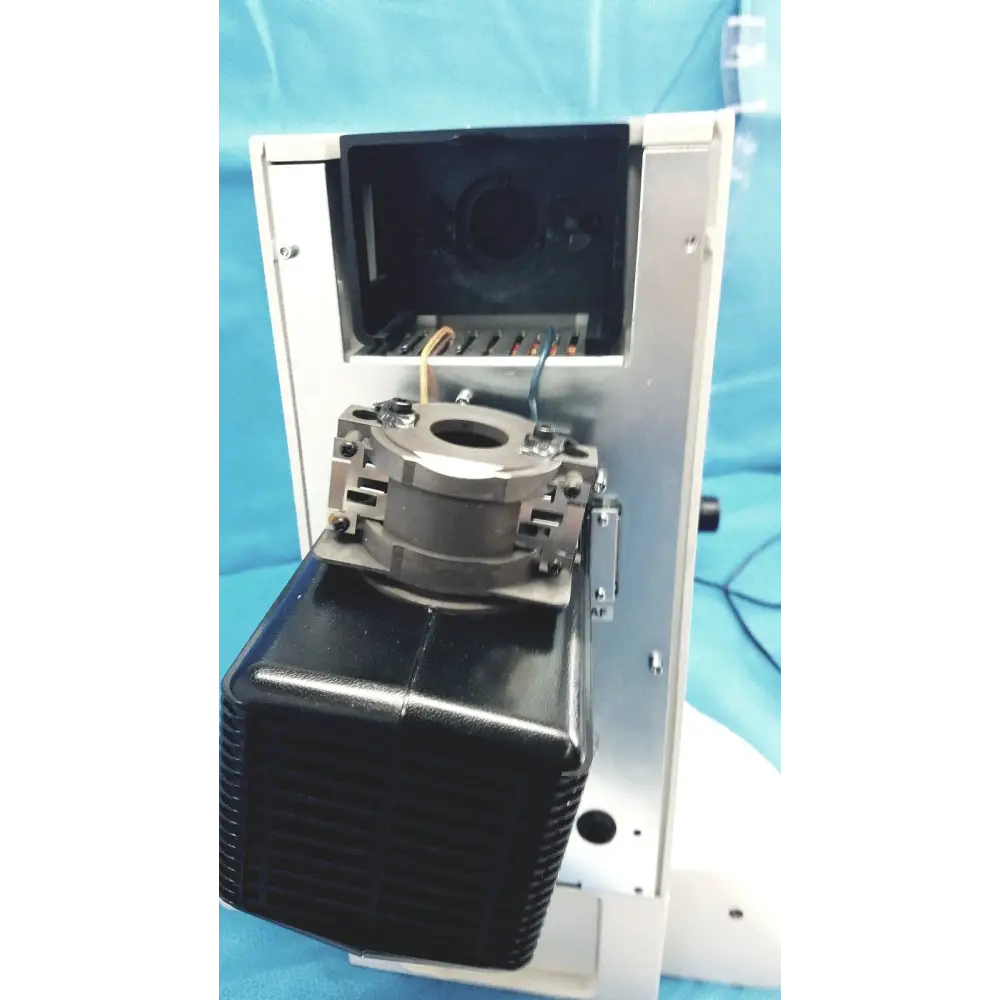

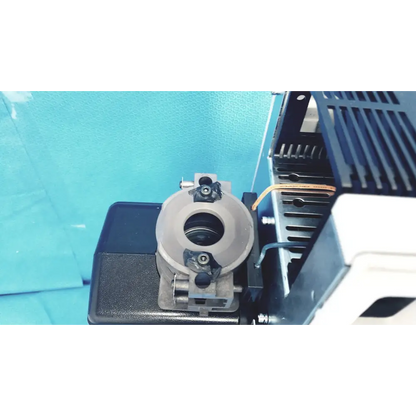

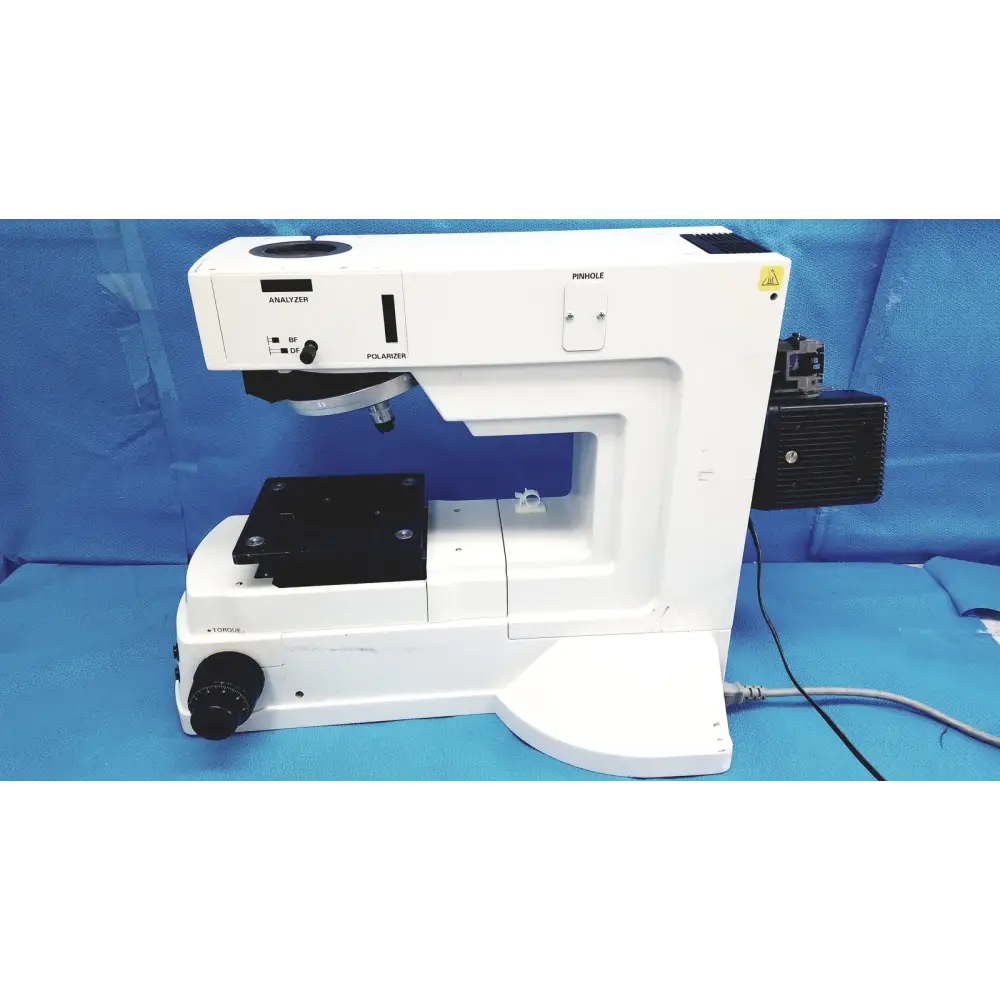

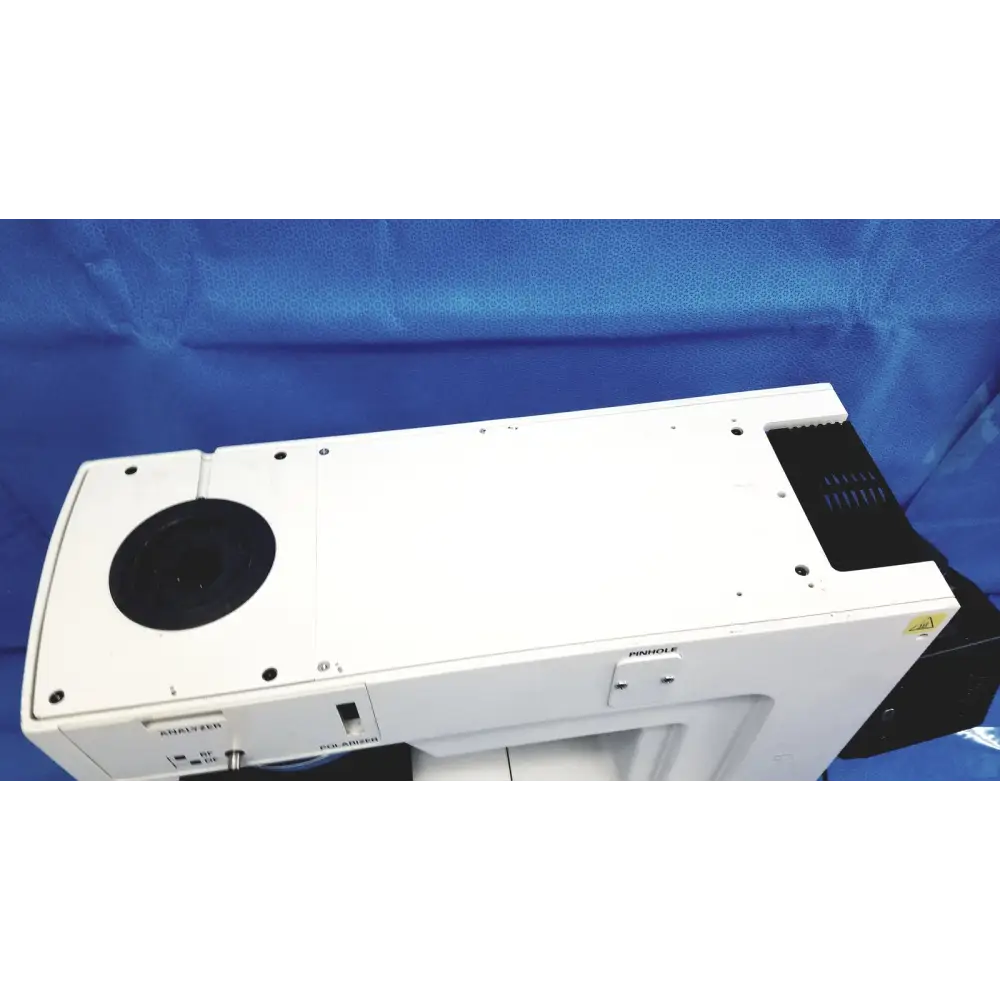

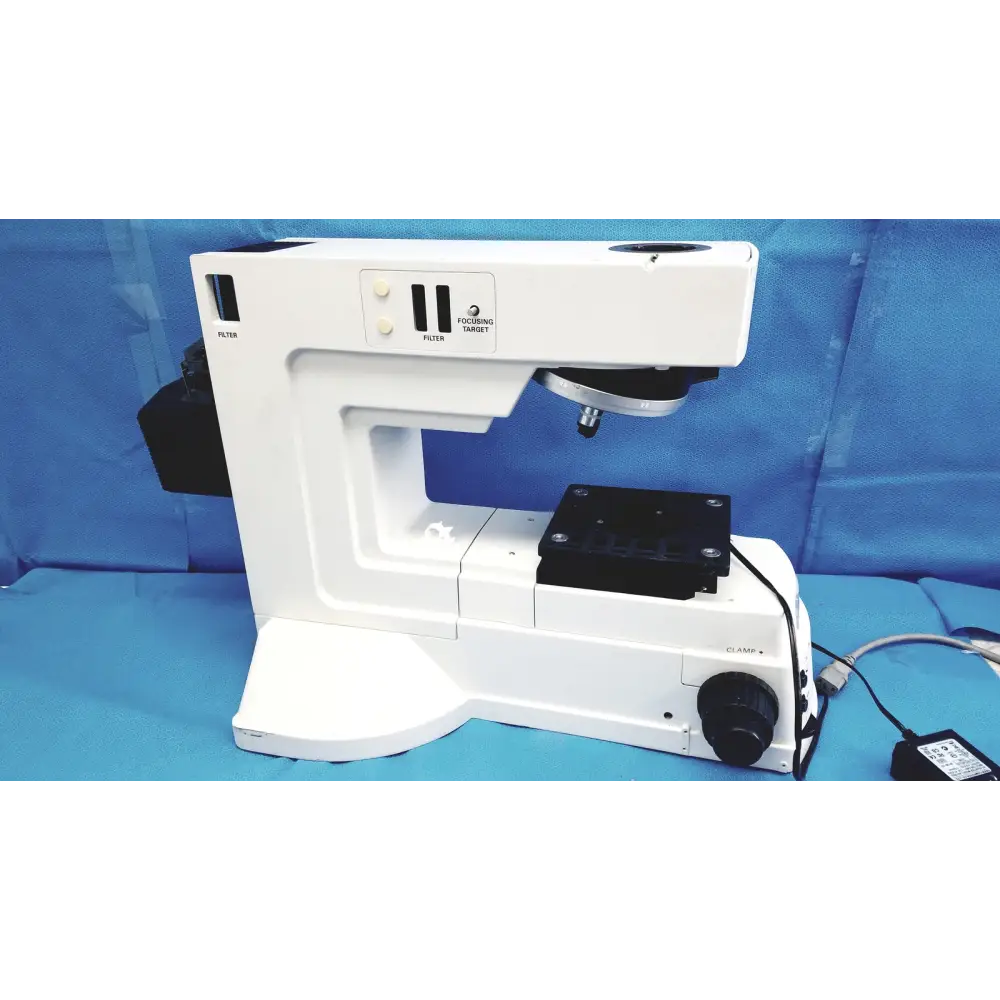

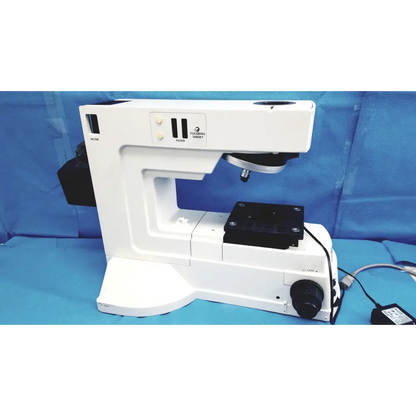

Description: The Nikon Eclipse L200 is a high-precision optical inspection microscope designed specifically for wafer and semiconductor analysis. Its advanced optical system provides clear, high-contrast imaging suitable for detailed inspections in cleanroom and laboratory environments.
Specifications:
Manufacturer: Nikon
Type: Upright optical inspection microscope
Application: Wafer and semiconductor inspection
Illumination: Brightfield and darkfield compatible
